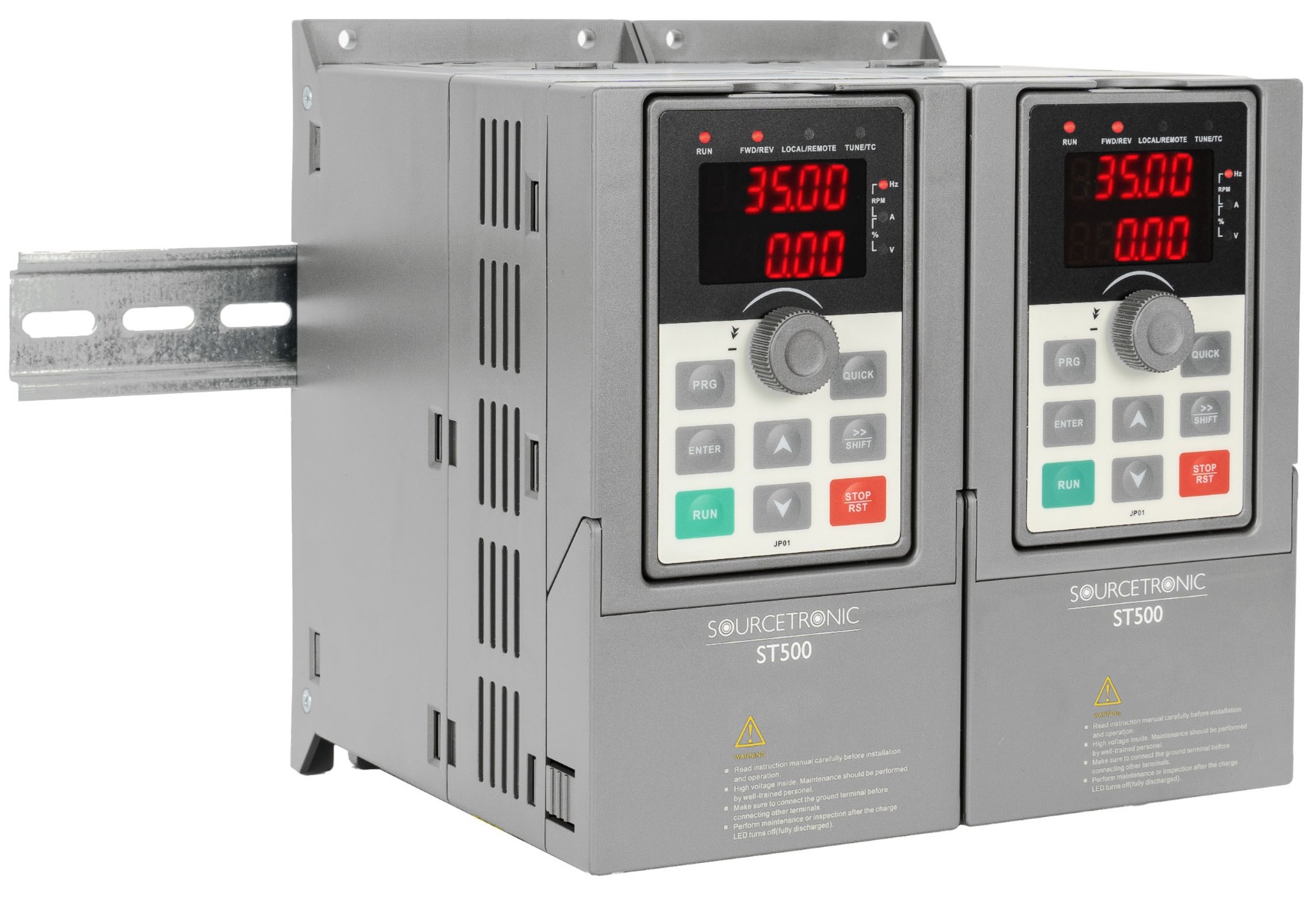

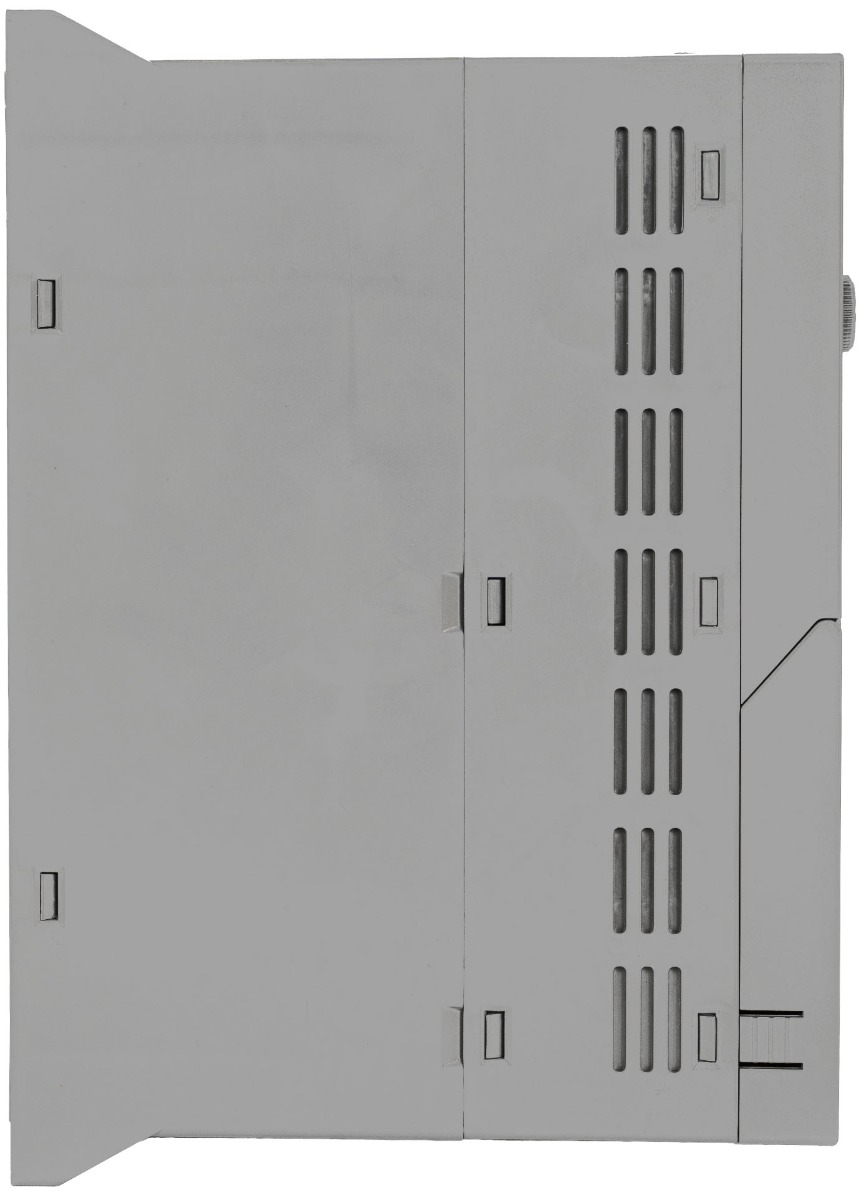

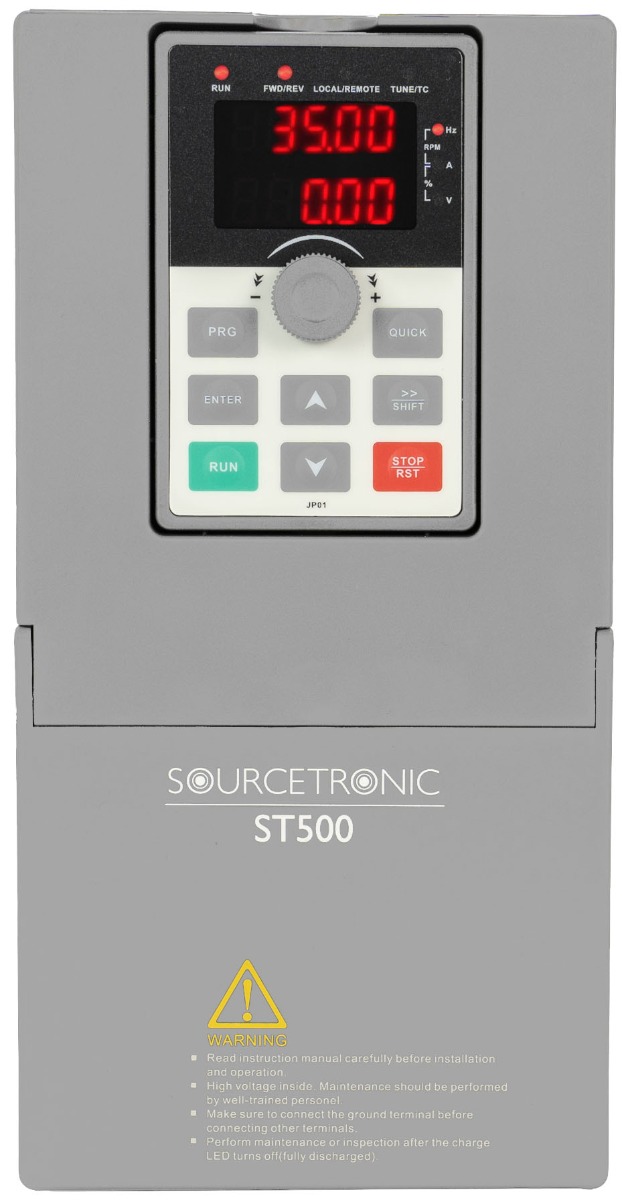

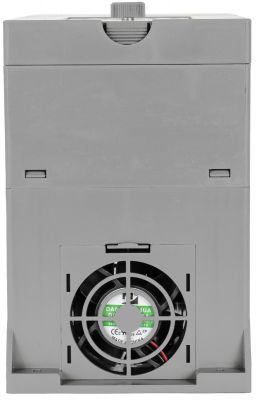

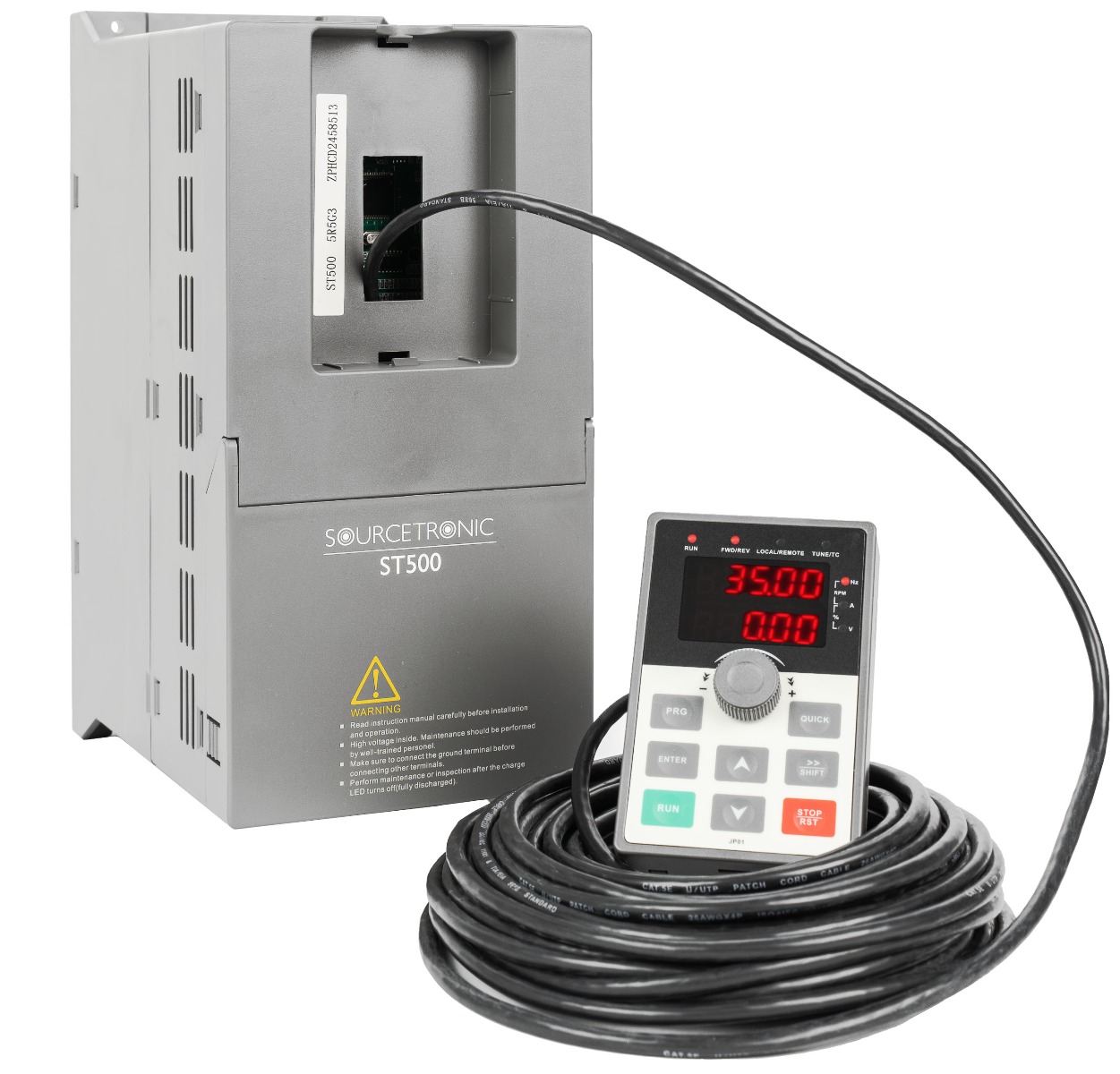

Frequency Inverter ST500 4KW 230V
€231.09*
Highlights
- Only suitable for 3-phase motors
- Power: 4KW
- Rated input current: 35 A
- Rated output current: 16 A
- Voltage: 220V(-15%) – 240V(+10%)
- Frequency: 50/60Hz, ± 5%
- Optimal pre-set of parameters
- Short installation time, easy intuitive start-up operation
- Flexible digital – and analogue I/Os
- Motor speed adjustable by potentiometer
- "Open-Loop-Boost-Mode"
- Auto slip compensation
- Extended PID functions
- Stop-function
Inputs
Digital Input |
|
Programmable Digital Inputs: | 8 |
Voltage: | 0 - 24VDC |
Logic: | PNP / NPN |
Max input voltage: | 30VDC |
Number of programmable pulse inputs: | 1 |
Max input frequency: | 100kHz |
Resolution for frequency control: | 0,01Hz (0-320Hz), 0,1Hz (0-3200Hz) |
Analog inputs |
|
Number of analog inputs: | 3 |
Type of inputs: | AI 1: 0-10V / 0-20mA AI 2: 0-10V / 0-20mA AI 3:-10-+10V / 0-20mA, PT100 |
Resolution for frequency control: | max. Frequency * 0,1% |
Outputs

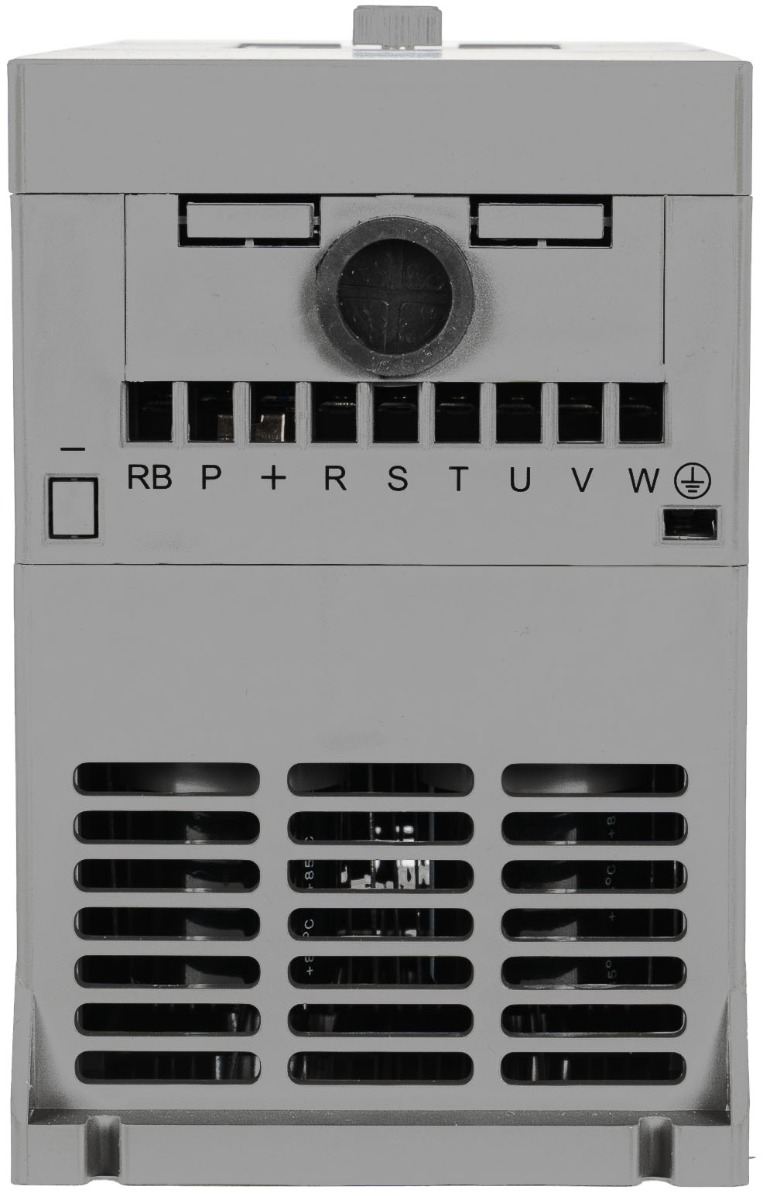

Output (U,V,W) |
|
Control modes: | V / F characteristic / vector control O. PG / vector control m. PG |
Output voltage: | 0 - 100% of the power supply |
Output frequency: | 0 - 300Hz (Vector control) 0 - 3200Hz (V/F - Control) |
Rated motor voltage: | 230V |
Ramptimes: | 0,0 - 6500,0s |
Ramp functions: | Linear / S-Curve |
Overload functions: | 150% for a minute 180% for 2 seconds |
Carrier frequency: | 0,5kHz - 16,0kHz adjustable |
U / f curve modes: | Linear / Square / Adjustable |
Digital output / Pulse output |
|
Programmable Outputs: | 2 |
Voltage | 24VDC |
Logic: | PNP |
Min. Output frequency: | 0Hz |
Max. Output frequency: | 100kHz |
Relais outputs |
|
Programmable Outputs: | 2 |
Terminal number: | TA1 / TC1 (close) TB1 / TC1 (open) |
Ma. Power AC: | NO: 250VAC / 5A; NC:250VAC / 3A |
Max. Power DC: |
30VDC / 1A |
Functions: | 39 |
Analog Outputs |
|
Programmable Outputs: | 2 |
Voltage: | 0 - 10VDC max. 5mA |
Current: | 0 - 20mA max. load 250Ohm |
Functions: | 16 |
Modbus |
|
RS485 | Integrated |
Technical Data
- Start/Stop-ramp linear: 0.0-6500.0s
- PID feedback signal DC(0-10V), DC(0-20mA)
- Motor nominal frequency 50Hz and 60Hz
- Forward and reverse operation
- Controller release/terminals/Bus
- 16 fixed speeds can be freely set and chosen by input signals
- 10 ways to control speed
- Step less setting of PWM frequency 1kHz-15kHz
- Slots for extensions: special pump control, I/O extension, incremental encoder
- Output frequency:
- Vector control: 0-400Hz
- V/F control: 0-320Hz
- Control mode:
- V/F control (linear, square)
- Vector control W/O PG
- Accuracy: 0.5%
- Speed control:
- Control range 1:100
- Accuracy 0.5%
- Torque:
- Automatic boost for low frequencies down to 1Hz
- Manual increasing 0.1% - 30%
- Response time: <40ms
- Starting torque: 150% from 0.5Hz
- Speed limits adjustable
- Closed-Loop-Technique
- Display:
- Frequency, current, voltage, torque, PID, ...
- Error message
- Keyboard lock
- Automatic functions:
- Indication of motor parameters
- Tension regulation (AVR)
- Zero-Voltage-Switching
- Active current limitation
- Restart after power fail
- Slip compensation
- DC brake function (time, intensity, frequency) & JOG-control
- Reduced motor noises caused by precise PWM-function
- Elegant avoidance of vibrations by blocking frequencies
- Variable speed by continuous torque
- Error memory
- Temperature -10°C up to +40°C above sea level without power reduction
- Storage temperature -20°C up to +65°C
- Humidity 90% RF – without condensation
- Altitude up to 1.000m above sea level without power reduction
- Safety standards in accordance to EN 61800-5-1:2007
- Electromagnetically tolerance in accordance to EN 61800-3:2004+A1:2012
- Vibration test below 5.9m/s² = 0.6g
- Protection class: IP20 (EN 60529), NEMA 1
- RoHS-conform
- CE-conform
Types of enclosures and dimensions
Rated voltage |
Output power [kW] |
Rated input current [A] |
Rated output current [A] |
Housing dimensions (LxWxH) [mm] |
Installation dimensions (lxwxd) [mm] |
Weight [kg] |
1-phase 230V | 4.0 | 35 | 16 | 260x120x182 | 250x90x5 | 2.5 |
Integrated protection concept
- 100 % ground fault protection
- Over- and under-voltage
- Over- and under-current
- Overheating protection
- Over voltage stall
- Overheating protection
- Communication fault
- PID feedback abnormity

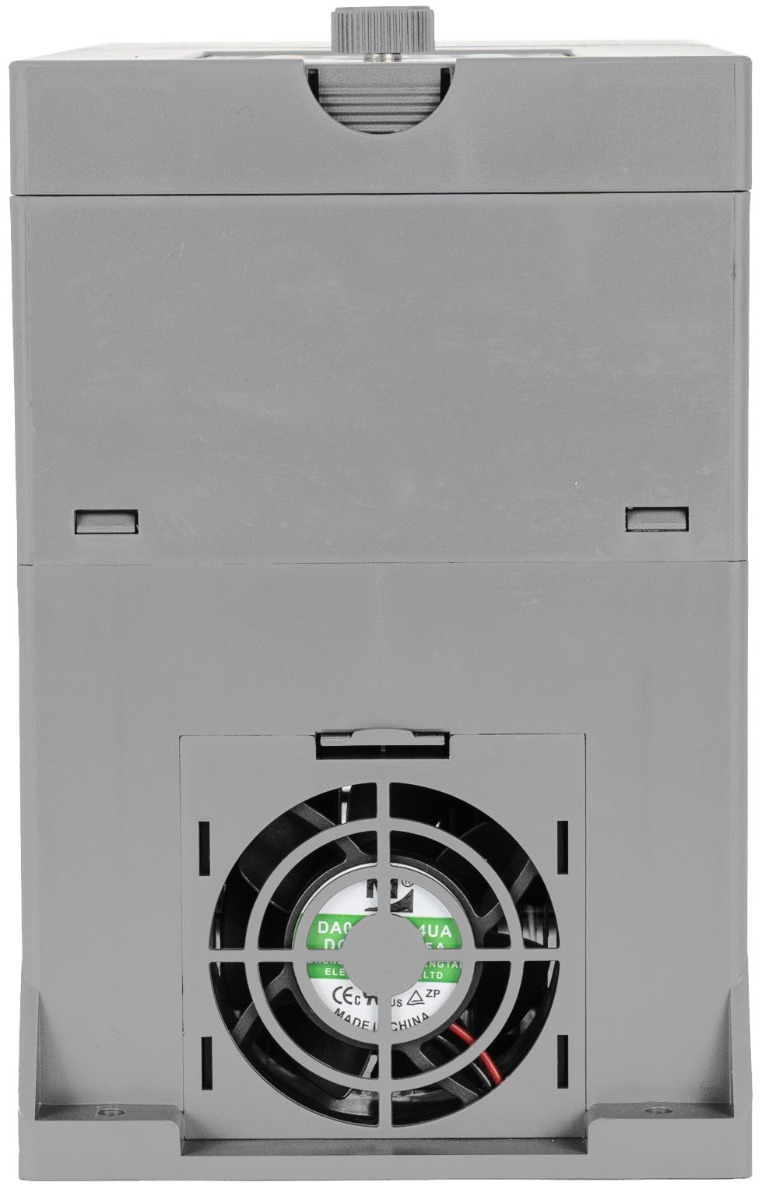

- Cooling according to power rating (fan temperature controlled)
- Password protection
- Auto-self testing after restart
- Power failure bypass

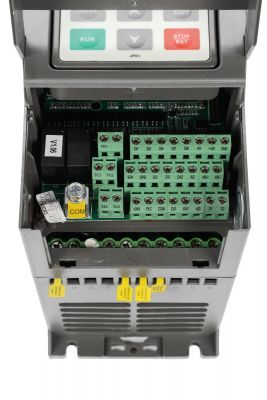

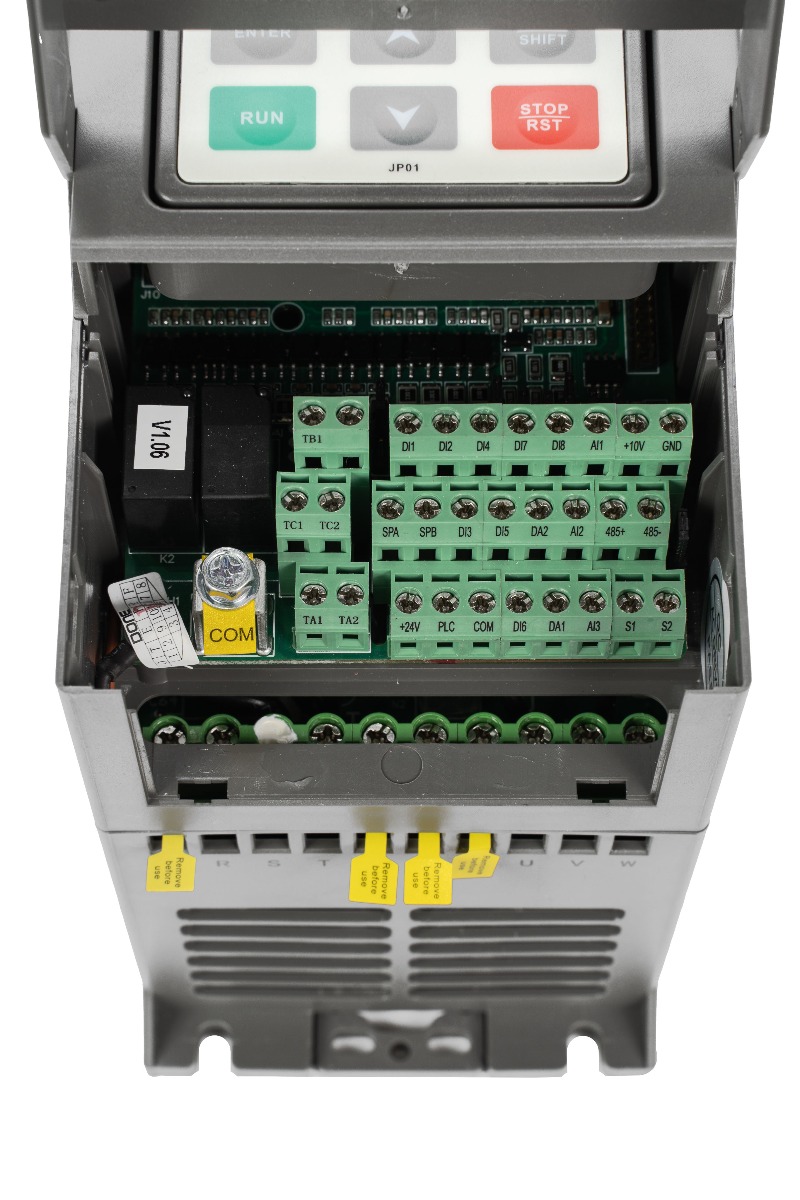

I/O interfaces
- Digital and analog I/O - flexible configuration
- 8 digital inputs 9-30VDC (PNP/NPN)
- 3 analog iputs (0-10V / 0-20mA)
- 2 digital output 0-24VDC / 0-40mA
- Pulse output 0-50kHz
- 2 analog input 0-10VDC, 0-20mA
- 2 relay output (250VAC/30VDC, 5A)
- RS485 interface
