LCR Meter ST2822A

Product number: 60273
EAN: 4260254472374

£258.23*

Prices excl. VAT plus shipping costs

In stock
Quantity

Frequently bought together

  • ST2822A-E
  • ST2822A-E
  • ST2822A-E
Total price:
excl. VAT
  • Current product: LCR Meter ST2822A - £258.23
  • SMD Tweezer ST26029C £50.96
  • Calibration LCR Meter £111.41

Details

Fachberatung unter
+49 421 277 9999
Print
  • Description ST2822A Handheld LCR Meter The portable LCR Meter ST2822A offers excellent configuration, such as 0.25% of basic measurement… More
  • Downloads
  • Technical data
Description
Product information "LCR Meter ST2822A"

ST2822A Handheld LCR Meter

The portable LCR Meter ST2822A offers excellent configuration, such as 0.25% of basic measurement accuracy, 0.0001 of D/Q resolution, 4 meas/s of measurement speed, percentage display and 4-tolerance comparator, 5-terminal test technology and intelligent L/C/R function, constant output impedance by 100 Ohm, data hold and max/min/average recording, is comparable with a bench meter.

Gorgeous dual-color cast shell, ultra-low power consumption by 25mA typical current, standard mini-USB interface and free communication software.

Highlights

  • Portable LCR-MeterHandheld LCR Meter ST2822A Side
  • Signal frequencies: 100Hz, 120Hz, 1kHz, 10kHz
  • Tolerance mode: 1%, 5%, 10%, 20%
  • 9V battery
  • Powered by battery or 12V DC
  • Up to 16 hours operation time with battery
  • Charging time approx. 80min
  • Backlight LC-Display
  • Display modes: Direct, ∆%, ∆ABS
  • 4-tolerance comparator

Outstanding performance and convenience

ST2822 Series applies the ultra-low power consumption design and high density SMD assembly techniques and can simultaneously display primary and secondary parameters on a LCD display with backlight. The dual-color shell is gorgeously once shaped; and functions are easy to operate.

The test frequency is up to 100 kHz, the readings of primary parameter 40,000 counts and the resolution of dissipation factor 0.0001. Accurate and convenient  measurements of passive-components can be achieved in different occasions for a long time.

With USB interface, ST2822 series can conveniently communicate with a PC and be remotely controlled by a PC

Handheld LCR Meter ST2822A Functions

Small size for easy carrying: Measure LCR components anytime and anywhere

With its convenience of handheld measurement, ST2822 series can perform the measurement of basic LCR parameters easier and faster and simultaneously meet the requirements of fast and convenient measurements in many occasions such as: field maintenance, fixed or non-fixed quality check on production line, warehouse in-and-out checkout of electronic components, real-time sampling or batch inspection and especially for outdoor measurements. Its excellent price versus performance ratio against bench meters makes it possible for most related technicians to equip with.

Excellent performance: Comparable test functions and performance with a bench meterHandheld LCR Meter ST2822A Display

The measurement frequency is up to 100kHz(ST2822A); the basic measurement accuracy is 0.25%; 40,000 counts for primary display is the highest in the identical handheld LCR meter; D/Q counts resolution for secondary parameter is 0.0001, which can be applied to the accurate dissipation factor measurement and makes it possible for the handheld LCR meter to measure low dissipation and ESR capacitors such as metalized, mica, NPO(COG)
ceramic capacitors. ST2822 supports up to 4 meas/sec of fast test speed comparable with the bench meter.

Constant output impedance: No worry for inconformity of component test results

For traditional handheld LCR meters and even some bench LCR meters, output impedance of signal source changes with different range. When measuring some level sensitive components, different LCR meters may give different results, for instance, impedance values of inductive components vary with test current; capacitance of ceramic capacitor with high Q factor changes with test voltage. So the change of output impedance will cause the inconformity of testing results. Most bench LCR Meter adopt 100Ohm signal source internal resistance, ST2822 series first achieves the use of 100 Ohm constant source internal resistance on handheld LCR meters. Whereupon, the test results of common or level sensitive components are reliable and comparable.

Flexible terminal configuration: Low-cost and high-accuracy terminal configurations available

ST2822 series applies 5-terminal and 3-terminal configurations. Low-cost banana plugs and crocodile clips can be used for simple 3-terminal test and 5-terminal slots, 5-terminal testing cables and SMD 5-terminal tweezers can be used for high-accuracy measurement.

Handheld LCR Meter ST2822A Usage

Ultra low dissipation: Longest battery life in the industry

Handheld LCR Meter ST2822A BatteryYou may be often annoyed by changing batteries; ST2822 series’ low dissipation capability provides you double battery life over other handheld LCR meters. With its advanced low consumption design, ST2822 series has the lowest dissipation in similar meters under 22mA working current (1 kHz, 100 Ohm load). The low consumption design makes the work-hour of the battery last for 16 hours. In the case of power-off or external power, the standby current of the battery is 2μA (limited to non-rechargeable model).

Multiple power configuration: Flexible power supply for easy useHandheld LCR Meter ST2822A Power Supply

ST2822 series provides you with external dc power port. When TH2822 series is used in a regular occasion where an ac power socket is available, the standard +12V power adapter can be used. And when the power adapter is at work, the internal alkaline battery enters a standby state with a power consumption of 2μA (limited to non-rechargeable model). it is quite valuable to inspect and classify various mixed components before feeding the components or warehousing.

Auto LCR function: Easy use for non-expert

There are various test parameters and equivalent circuit modes in ST2822 series, which is extraordinarily suitable for professional measurement.  Nevertheless, most non-experts can be difficult to identify inductor, resistor and capacitor in that most RC-components are almost identical in appearance. By using Auto LCR Function, users can identify tested components easily and obtain measurement results immediately. All you need do is to press the key of LCR AUTO, then according to the properties of tested components, the meter will automatically select appropriate test parameter combination and equivalent modes.

USB communication: Fast mobile data acquisition

Handheld LCR Meter ST2822A USB ConnectionMini-USB interface is the standard interface of ST2822 series. Like cell phones and other digital products, ST2822 series can rapidly be connected to desktop or portable computer through USB interface and set up acquisition platform of testing data anytime and anywhere. Automatic sending function of testing data and even interactive control by SCPI are available on ST2822 series. When connected to PC, ST2822 series is simulated as a serial equipment. To realize device control, data acquisition and statistic analysis, all you need to do is to know how to use a PC serial port.

Technical data

  • Measuring Parameters: Primary: L, C, R, Z / Secondary: D, Q, θ, ESR
  • Testlevel: 0.6 Vrms
  • Basic accuracy: 0.25 %
  • Measuring speed: 4 meas/sec (fast), 1.5 meas/sec (slow)
  • Equivalent circuits: series and parallel
  • Auto LCR function
  • Automatic ranging mode
  • Test terminals: 3-terminal, 5-terminal
  • Correction: Short and open
  • Mini-USB Interface, SCPI compatible
  • Firmware update via USB
  • Constant 100Ω output impedance
  • Automatic power-off function
  • Measuring modes: Manual, auto and hold
  • Auto-Power-Off: 5 / 15 / 30 / 60 min. / OFF
  • Sweep frequency correction function
  • Operation temperature: 0°C – 40°C
  • Dimensions (W/H/D): 190/90/41 mm
  • Weight: 0.35 kg
  • Safety: IEC 61010-1:2001, IEC 61326-2-1:2005

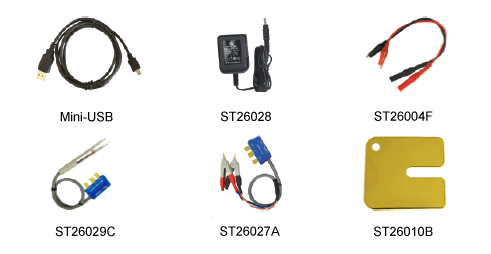

What's in the Box

LCR Meter ST2822 Accessories

  • Mini-USB-cable
  • ST26004F crocodile clip test leads (red/black)
  • ST26029C SMD test tweezers
  • ST26027A  Kelvin test clips
  • ST26010B Short plate
  • 8.4V Ni-MH 200mAH rechargeable battery
  • Operation manual
  • Software ST2822X
Basic accuracy: >0,1%
Frequency: ≤100kHz
Testlevel: ≤1V
Downloads
  • ST2822A Bedienungsanleitung (487.55 KB)
  • ST2822A Accuracy (1.01 MB)
  • ST2822A User Manual (6.68 MB)
Technical data
Model ST2822A ST2822C ST2822D ST2822E

Function

Test Parameter Primary parameters: L / C / R / Z Secondary parameters: D / Q / R /θ/ ESR Primary parameters: L / C / R / Z/ DCR Secondary parameters: D / Q / R /θ/ ESR
Equivalent Circuit Series and Parallel
Parameter and Equivalent Mode Hold, Auto
Ranging Mode Auto
Measurement Terminals 3-terminal, 5-terminal
Measuring Speed 4meas/sec, 1.5meas/sec
DCR Measuring Speed --- 3meas/sec
Calibration Function Open, short
Comparator Function 1%, 5%, 10%, 20% 1%, 5%, 10%, 20%
Input fuse 0.1A / 250V
Interface Mini-USB (virtual serial port)

Test Signal

Test Frequency 100Hz,
120Hz,
1kHz,
10kHz,
100Hz,
120Hz,
1kHz,
10kHz,
100kHz
100Hz,
120Hz,
1kHz,
10kHz,
100Hz,
120Hz,
1kHz,
10kHz,
100kHz
Test Level 0.6Vrms 0.3 Vrms, 0.6 Vrms, 1 Vrms
Output Resistance 100Ω

Display

Display LCD Primary-Secondary dual display, with backlight (ST2822 not available)
Reading Max. Primary parameters: 40,000 digits, secondary parameters D/Q Minimum resolution: 0.0001
Basic accuracy 0.25% 0.1%

Measuring Range

L 0.00µH - 1000.0H 0.000µH - 1000.0H 0.00µH - 1000.0H 0.000µH - 1000.0H
C 0.00pF - 20.000mF 0.000pF - 20.000mF 0.00pF - 20.000mF 0.000pF - 20.000mF
Z/R 0.0000Ω- 10.000MΩ
DCR --- --- 0.0000Ω- 20.000MΩ
ESR 0.0000Ω- 999.9Ω
D 0.0000 - 9.999
Q 0.0000 - 9999
θ 0.00°- ±180.0°

Power Requirements

Battery model IEC 6LR61, 9V alkaline battery LH-200H7C,8.4V Ni-MH 200mAH rechargeable battery
AC power adapter Input: 220V/50Hz, Output: 12V-15V(100Ω Load)
Standby Current Max.2µA 18µA 11µA
Battery life 16 hours (typical) , new alkaline battery, with backlight off
Auto power off 5min, 15min, 30min, 60min, OFF available; Factory Default : 5min
Low voltage indicator When battery voltage drops below 6.8V, low voltage indicator turns on.
