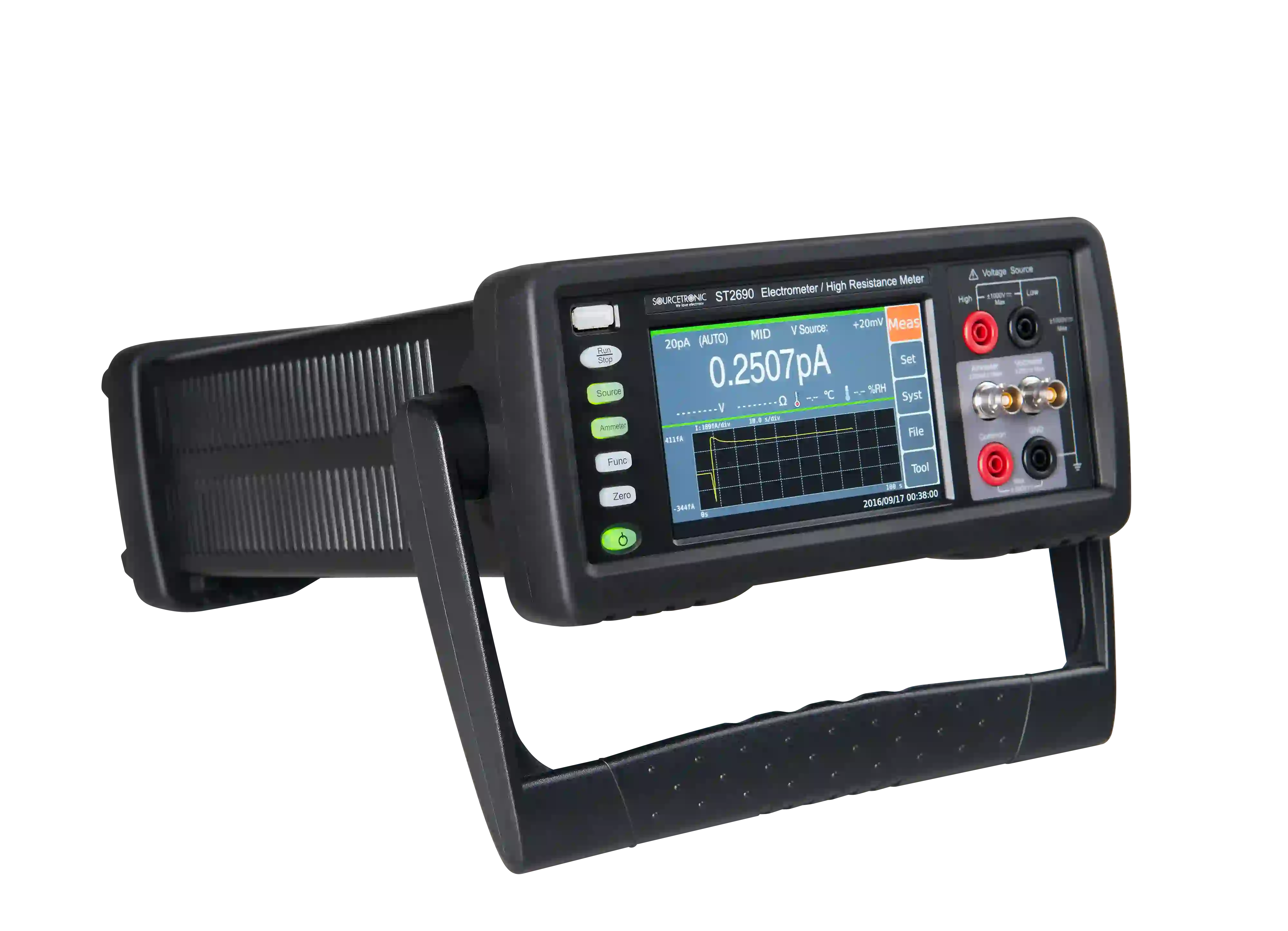

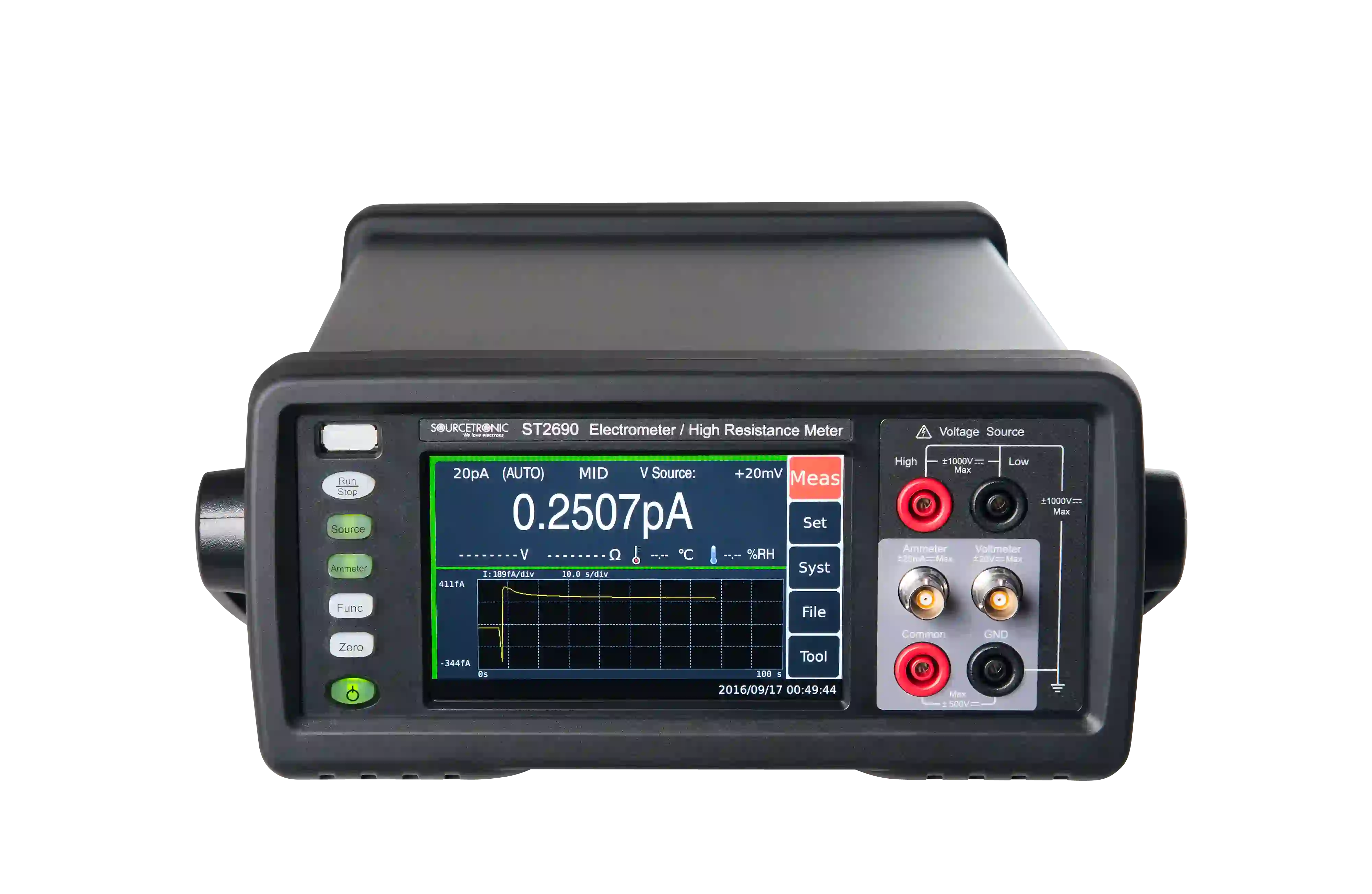

Electrometer ST2690
Product number:
64353
EAN:
4260689523603
Price on request
Only 1 left in stock
Details
Fachberatung unter
+49 421 277 9999
+49 421 277 9999
Print
Description
Product information "Electrometer ST2690"
Highlights
- Built-in voltage source: ±1000 V, resolution: 700 μV
- 5.0-inch capacitive touch screen
- Measurement Range up to 10 PΩ
- 6½-digit measurement resolution

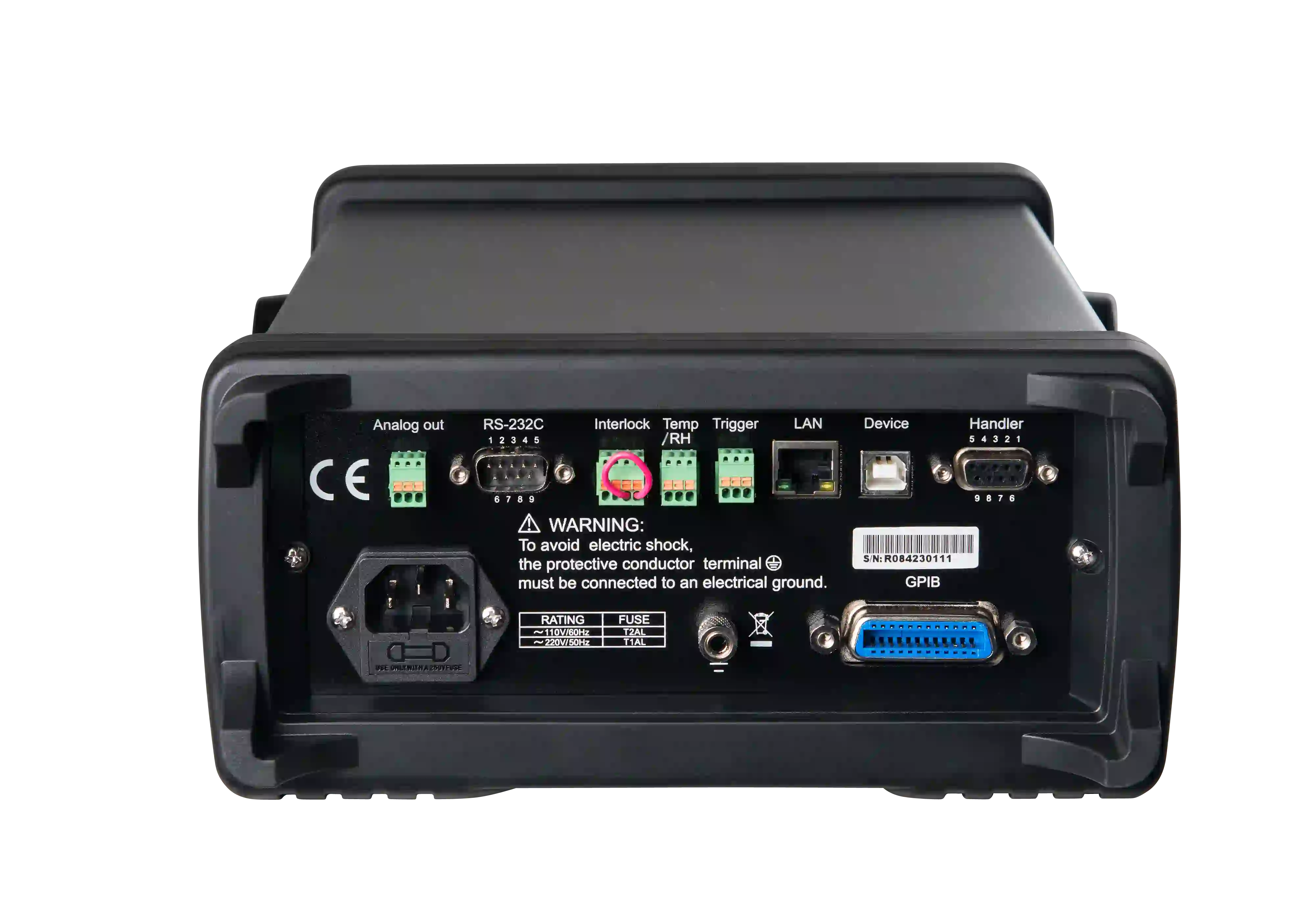

- Interfaces: Handler, GPIB, LAN, RS232C and USB
Technical Data
- Current measurement: 0.1fA - 20mA
- Minimum range: 20pA
- Voltage measurement: 1μV - 20V
- Input resistance: >200TΩ
- Charge measurement: 1fC - 2μC
- Temperature measurement
- Humidity measurement
- With dedicated shielding test box

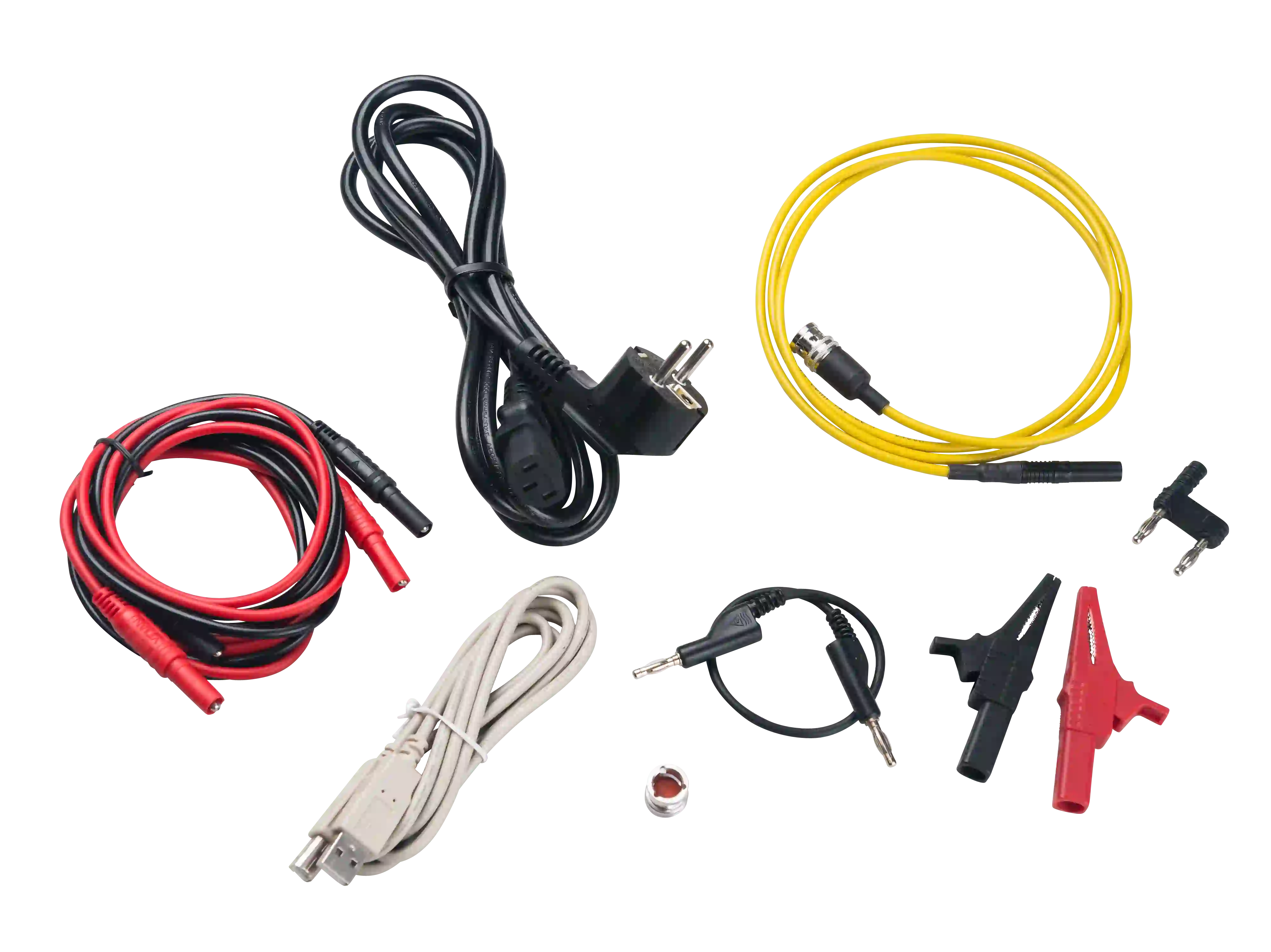

Whats in the box
- Connection cable ST26058D
- Lantern plug cable ST26058G
- Alligator clip ST26058F
- Triaxial open circuit cap ST26058H
- Short-circuit cable ST26058C
- USB connection Cable ST26017
- Temperature and Himidity Sensor ST2690 THS
- Connection lead
