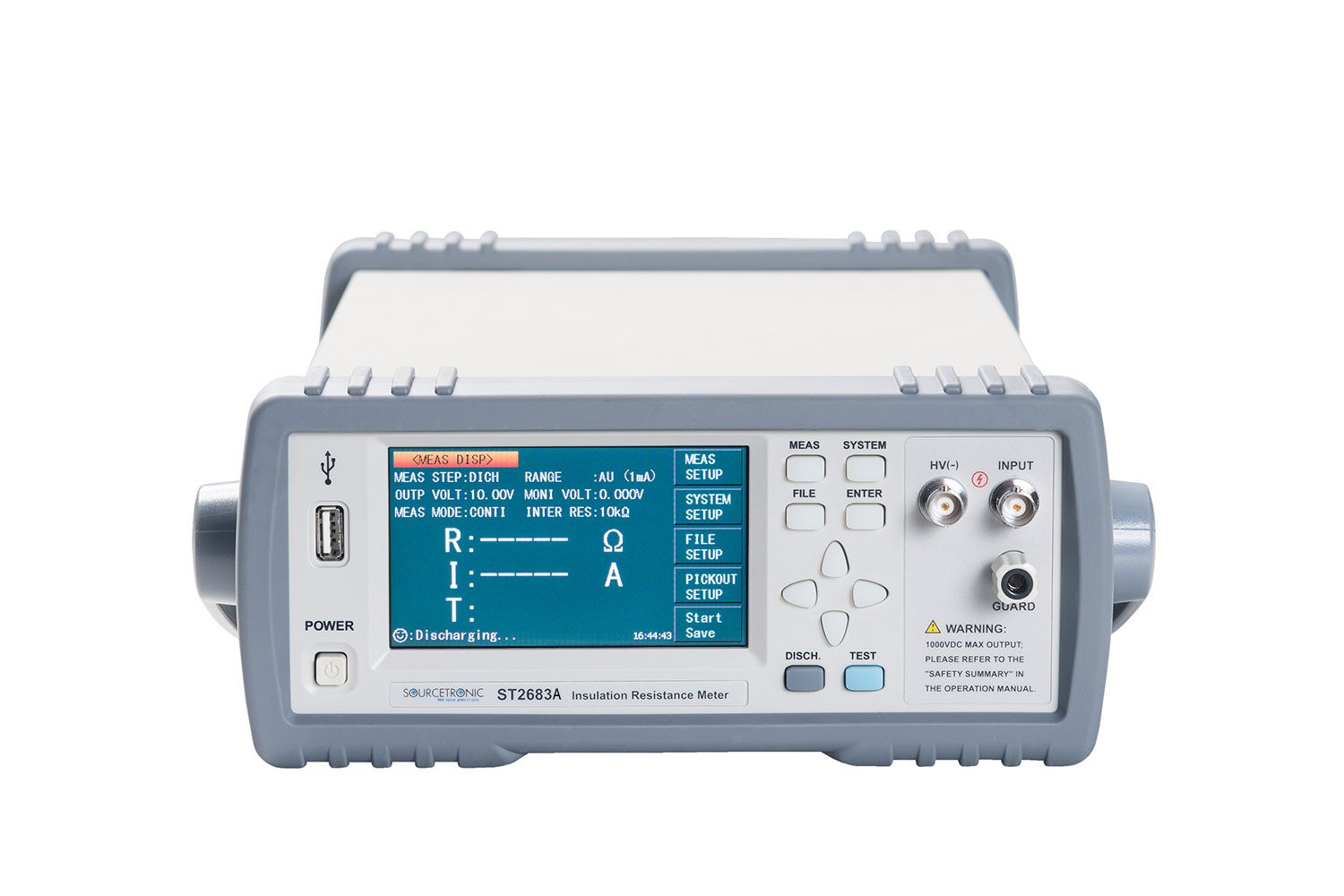

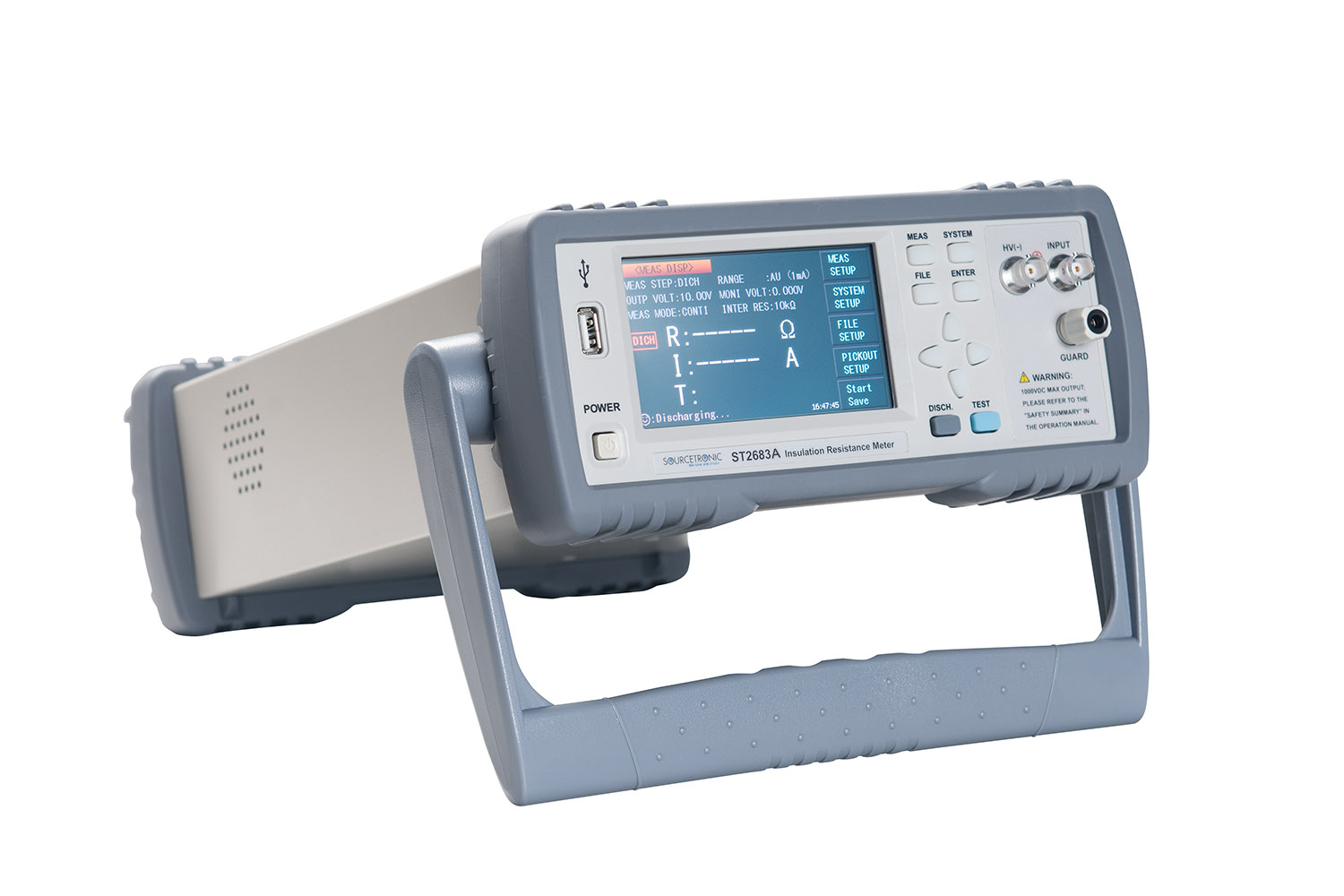

Insulation Tester ST2683A (Rental device)

Ordernr. 63989
EAN 4260409229129
£218.32
Excl. 0% VAT
£218.32
Incl. 0% VAT
Goods expected soon
Details
Technical Service
+49 421 277 9999

Highlights

  • Test voltage range: 1V - 1000V
  • Insulation resistance and leakage current dual display
  • Insulation resistance range: 100kΩ - 10TΩ
  • Correction function
  • PASS / FAIL judgment with sound alarm
  • Handler, RS232C and USB

Specification

  • Resistance test
    • Test range: 100kΩ - 10 TΩ
    • Test accuracy: >10nA ± 2% / ≤10nA ± 5%>
  • Current test
    • Test accuracy: 2% ± 3pA
Test range Current   Input impedance
Range 1 100µA - 1mA   10kΩ
Range 2 10µA - 100µA   10kΩ
Range 3 1µA - 10µA   10kΩ
Range 4 100nA - 1µA   10kΩ
Range 5 10nA - 100nA   1MΩ
Range 6 1nA - 10nA   1MΩ
  • Accuracy:
    • ≥ 10V: 1% ± 1V
    • < 10V: 10% ± 0.1V
  • Current limit: 10mA
  • Control mode: manual, timer, remote control
  • Memory: Internal and external via USB
  • Range mode: Auto, Hold
  • Measurement speed: Fast: 30ms / Slow: 60ms
  • Comparator function: PASS (3 bins) and FAIL (1 bin)
  • Interface: Handler, RS232C and USB
  • Power supply: 99 - 121V, 198V-242V / 47/63 Hz
  • Working temperature & humidity: 0°C - 40°C, ≤ 90% RH
  • Dimensions (W/H/D): 235/104/360 mm
  • Weight: 3.6 kg
  • CE-conformity: EN 50 191

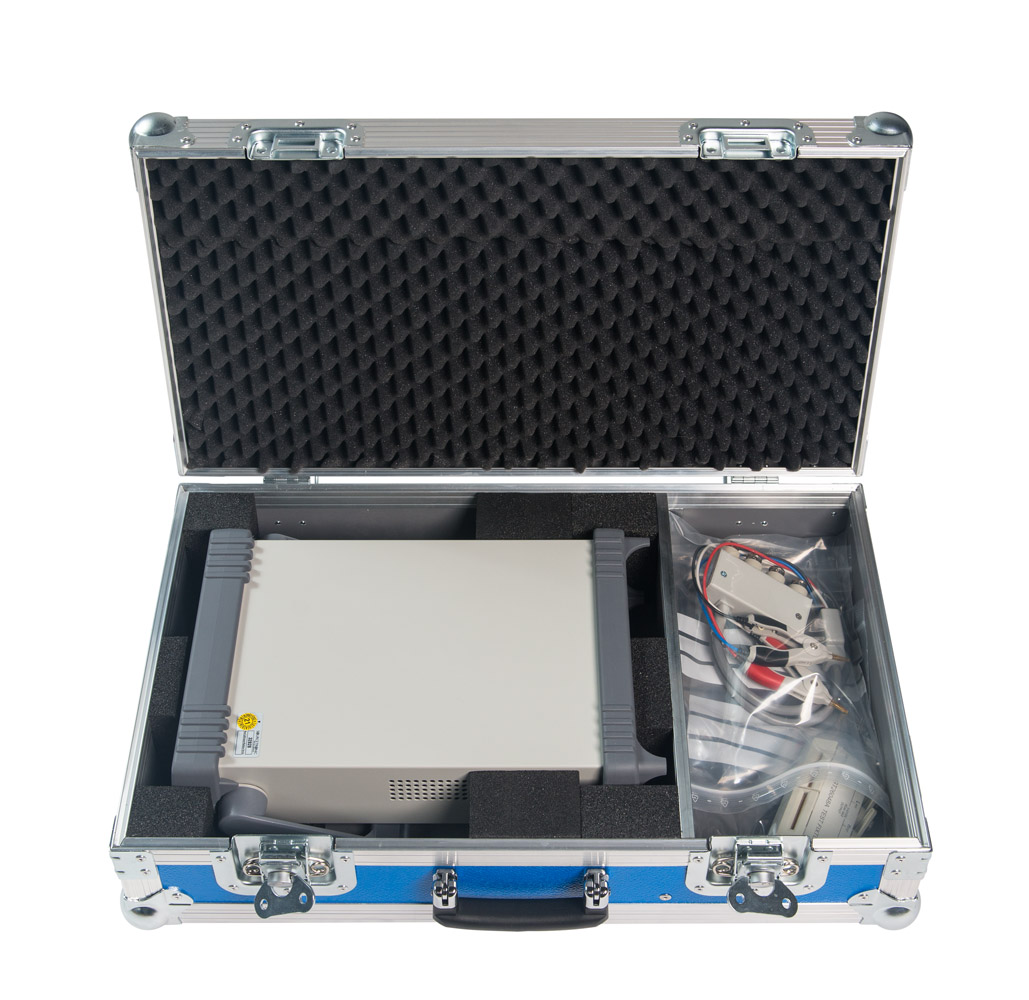

What's in the box

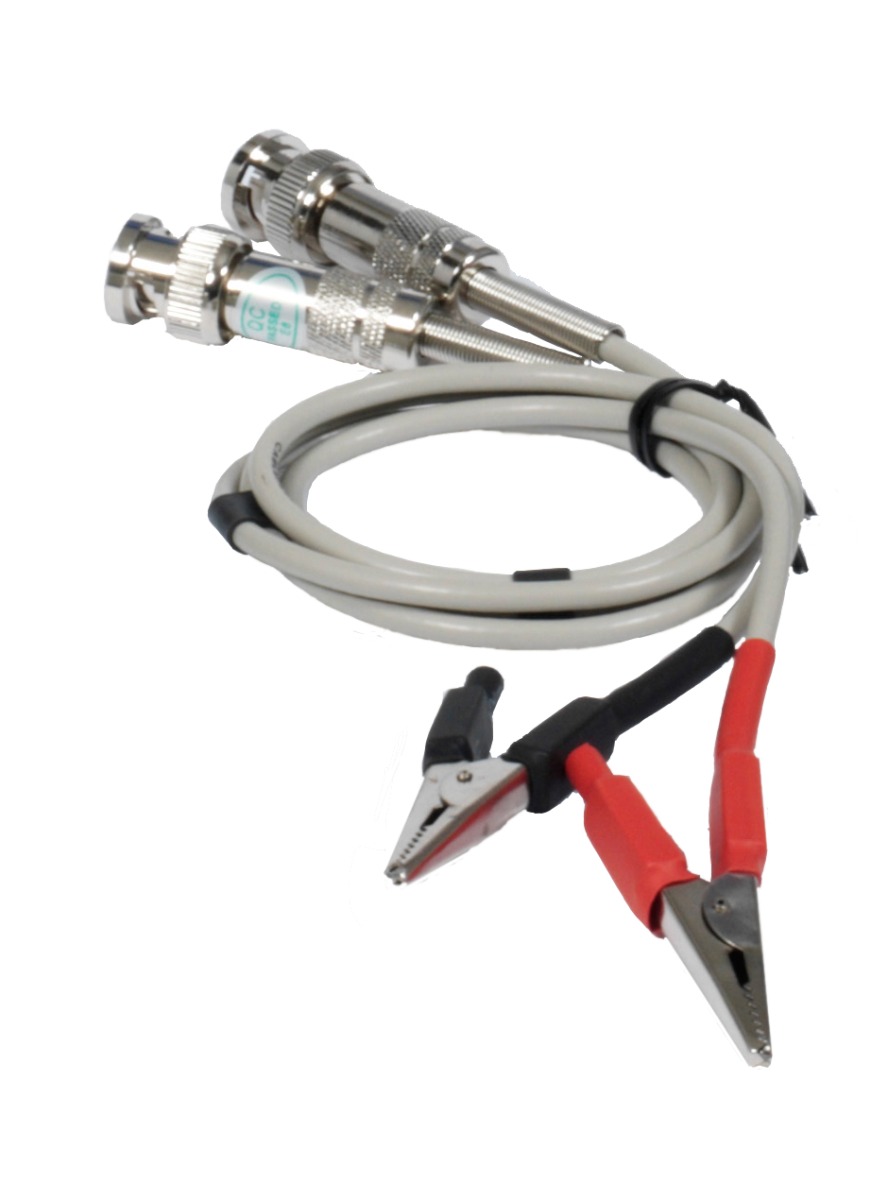

  • ST26004B 2-terminal-lead with BNC/crocodile clip
  • Operation manual
  • Power cable
  • Factory calibration

Specification
Model ST2683A ST2683B
Resistance test
Test range 100kΩ - 10TΩ
Test accuracy I>10nA : ±2%
I≤10nA : ±5%
Current test
Test range
Range 1: 100uA - 1mA, internal input impedance 10kΩ
Range 2: 10uA - 100uA, internal input impedance 10kΩ
Range 3: 1uA - 10uA, internal input impedance 10kΩ
Range 4: 100nA - 1uA, internal input impedance 10kΩ
Range 5: 10nA - 100nA, internal input impedance 1MΩ
Range 6: 1nA - 10nA, internal input impedance 1MΩ
Test accuracy 2% ± 3pA
Test voltage
Range 1V - 1000V 1V - 500V
Accuracy Voltage≥10V: 1%±1V
Voltage<10V: 10%±0.1V
Current limit 10mA
ON/OFF Manually turn on or off it on front panel, or controlled by built-in timer, or by remote control
Charge time 0 - 999s programmable
Measurement delay 0 - 999s programmable
Measurement speed Fast: single measurement time≤30ms
Slow: single measurement time≤60ms
Comparator function 4 bins: 3 bins for PASS, 1 bin for FAIL
Range mode Auto, Hold
Memory Internal memory and external USB disk

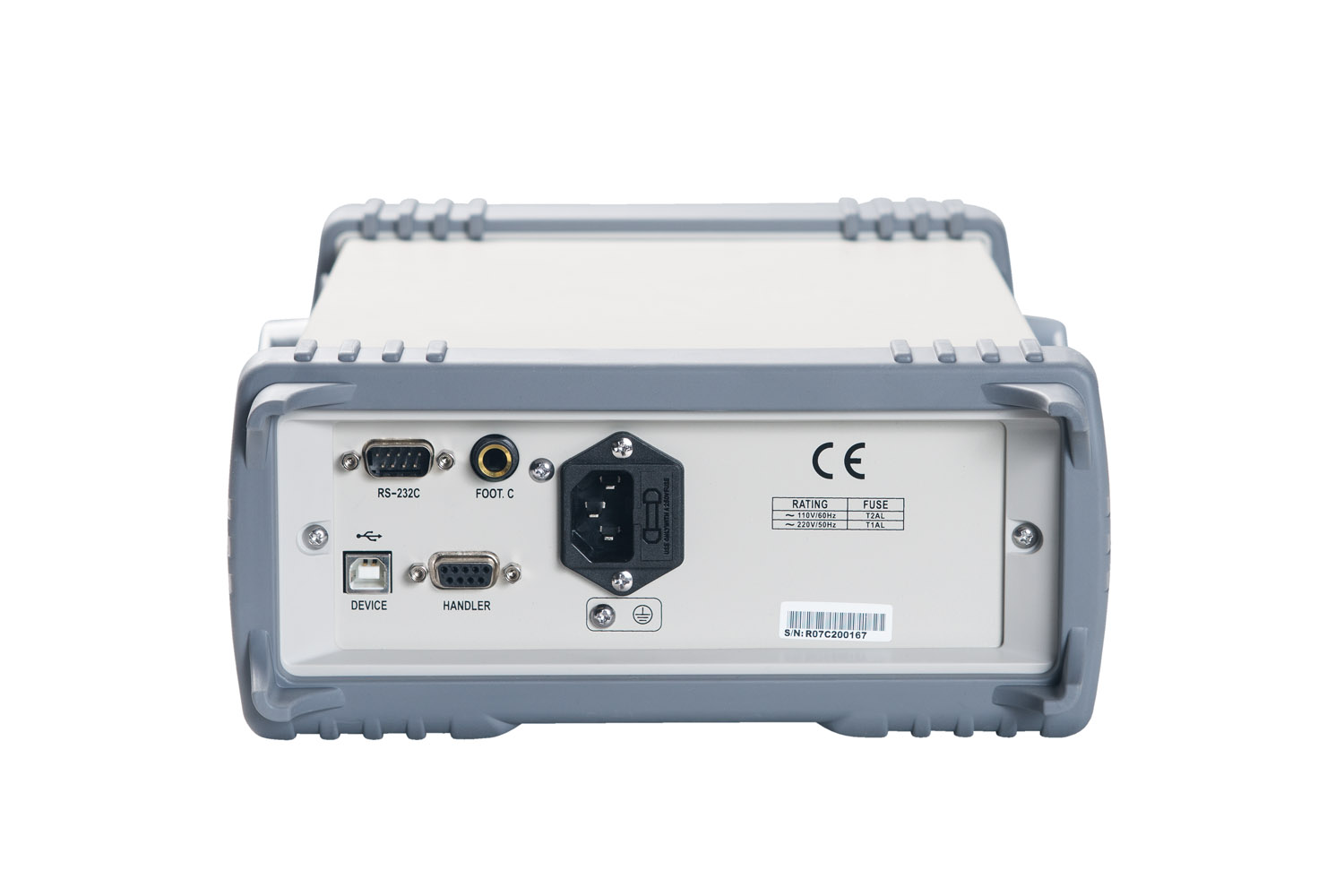

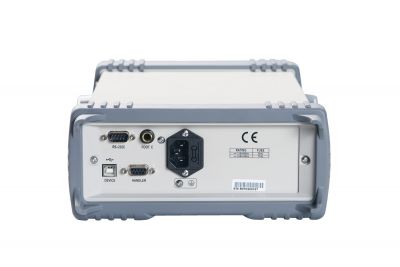

Standard interface RS232C,USB HOST,USB DEVICE,HANDLER
Genaeral Specifications
Operating Temperature and Humidity 0°C - 40°C, ≤90%RH
Power Requirements Voltage 90 - 121 V AC (60Hz) or 198 - 242V AC (50Hz)
Frequency 47.5Hz - 52.5Hz
Power Consumption < 50 VA
Dimensions (WxHxD) 235mmx104mmx360mm
Weight Approx.3.6kg
