LCR Measuring Bridge ST2836

Highlights

• Frequency: 4Hz – 8.5MHz, Accuracy: 0.01%
• Test Parameters: Cp/s, Lp/s, Rp/s, |Z|, |Y|, R, X, G, B, D, Q, θ, Vac-Iac, DCR, Vdc-Idc
• Basic Accuracy: 0.05%
  • Maximum basic accuracy at 1kHz to 1MHz: 0.05%
  • Maximum basic accuracy at 2MHz: 0.1%
  • Maximum basic accuracy at 5MHz: 0.5%
  • Maximum basic accuracy at 8.5MHz: 1.0%
• Display: 7" Color TFT
• Speed: 5.6ms

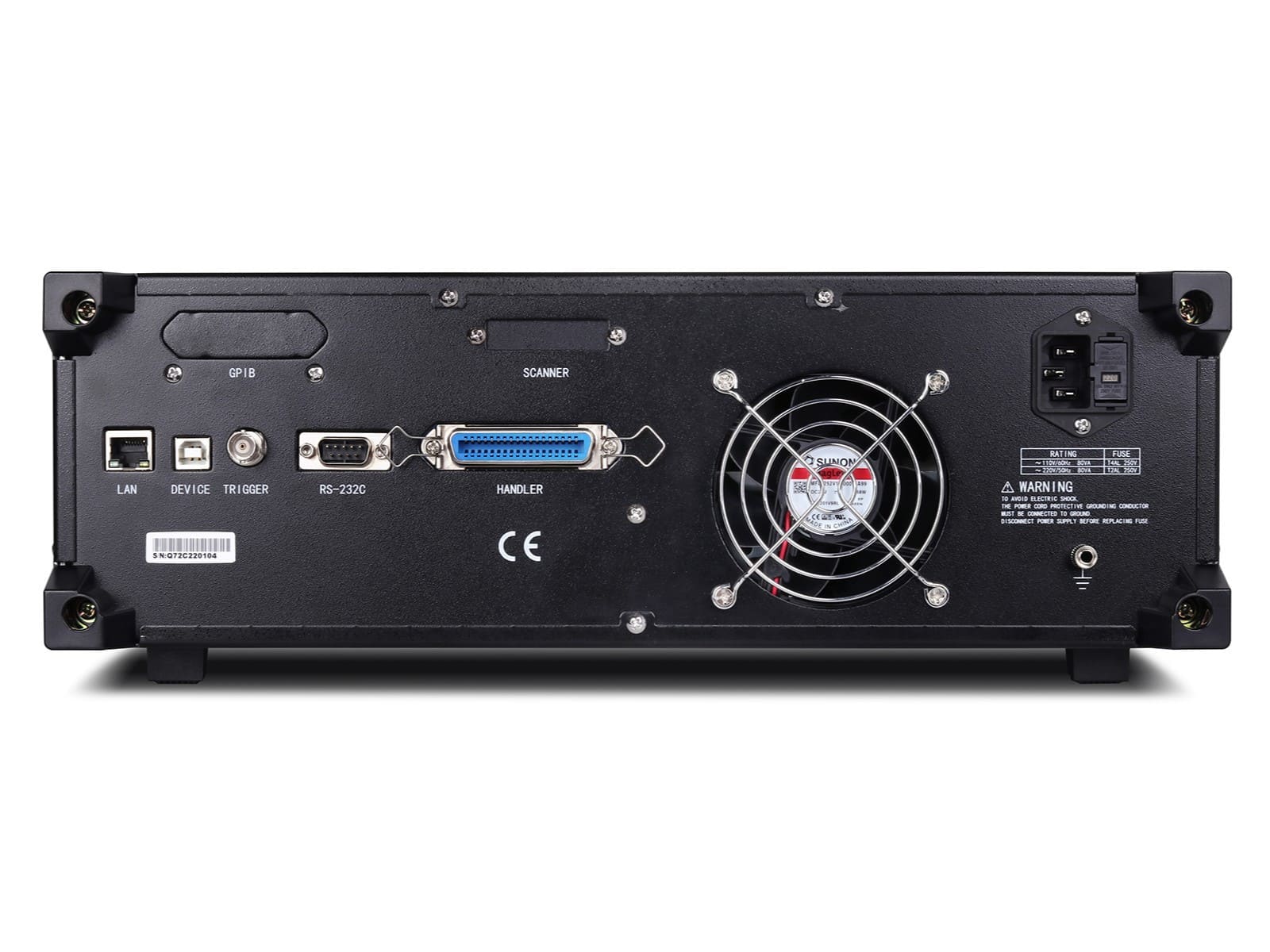

• Interfaces: USB HOST, USB DEVICE, LAN, Handler, RS232C

Specifications

AC Test Level Voltage:

• ALC OFF: 5mVrms–2Vrms, from 1MHz: 1Vrms
• ALC ON: 10mVrms–1Vrms
• Max. Resolution: 100µV, 4-digit input
• Accuracy:
  • ALC ON: 6% of set voltage + 2mV
  • ALC OFF: 10% of set voltage + 2mV

AC Test Level Current:

• ALC OFF: 50µArms–20mArms, from 2MHz: 10mArms
• ALC ON: 100µArms–10mArms
• Max. Resolution: 1µA, 3-digit input
• Accuracy:
  • ALC ON: 6% of set current + 20µA
  • ALC OFF: 10% of set current + 20µA

DC Test Level Voltage:

• 100mV–2V
• Max. Resolution: 100µV

Additional Specifications:

• Measurement Speed (f ≥ 10kHz): Fast: 5.66ms / Medium: 120ms / Slow: 230ms
• Equivalent Circuits: Series and Parallel
• Output Impedance: 100Ω
• Internal DC BIAS Source:
  • Voltage/Current Range: 0V - ±10V / 0mA - ±100mA
  • Resolution: from 100µV / 1µA
  • Accuracy:
    • 1% of set voltage + 5mV
    • 5% of set current + 50µA
• Compatible External DC Bias Current Source: ST1778
• Sweep over 10-point list
• Sweep Parameters: Frequency, Voltage, Current, Bias Voltage, Bias Current
• Test Signal Monitor Function
• Built-in Comparator for 10 bins and Counter
• Control Interfaces: RS232, Handler, LAN, USBCDC, USBTMC, Ext. Trigger; optional: GPIB
• USB Host Port for USB Stick
• USB Stick can be used to store settings, measurement data, and screenshots
• Measurement Range Switching: Auto and Hold (manual)
• Trigger Mode: Internal, External, Manual, and Bus
• Correction Function: Open, Short, Load
  • Separate correction for each of the 10 sweep points
• Power Supply: 100–120V, 198V–242V / 47–63Hz
• Dimensions (W/H/D): 400/132/425 mm
• Weight: 15 kg
• CE-compliant according to EN 50 191

Measurement Ranges

The measurement ranges can be conveniently selected using the function keys on the right side of the display.

• LCR: 100mΩ, 1Ω, 10Ω, 20Ω, 50Ω, 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ
• RDC: 10Ω, 20Ω, 50Ω, 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ

Display Ranges

• |Z|, R, X, DCR: 0.001mΩ - 99.9999MΩ
• |Y|, G, B: 0.00001µS - 99.9999S
• L: 0.00001µH - 99.9999kH
• C: 0.00001pF - 9.99999F
• Q: 0.00001 – 99999.9
• D: 0.00001 - 9.99999
• θ (DEG): -179.999° - 179.999°
• θ (RAD): -3.14159 - 3.14159
• Δ%: ±(0.000% - 999.9%)
• VDC: ±0V - ±999.999V
• IDC: ±0A - ±999.999A

Functions and Applications of the LCR Meter

The ST2836 LCR meter is the most affordable device in its class. It was developed to offer high accuracy over a wide frequency range at a significantly lower price than the even more precise ST2839. Measurement results can be determined with an accuracy of up to 0.05%. In addition to this high precision, the LCR meter also offers the capability to perform a measurement cycle in less than 6 milliseconds. Fast and accurate measurements are essential for demanding industrial applications. Common application areas therefore include production lines, such as in the automotive sector, as well as measurement laboratories and research and development departments.

Scope of Delivery

• ST26011BS Kelvin Terminal Test Clips
• ST26048 4-Terminal Test Adapter
• ST26010 Gold-Plated Short-Circuit Plate
• Power Cord
