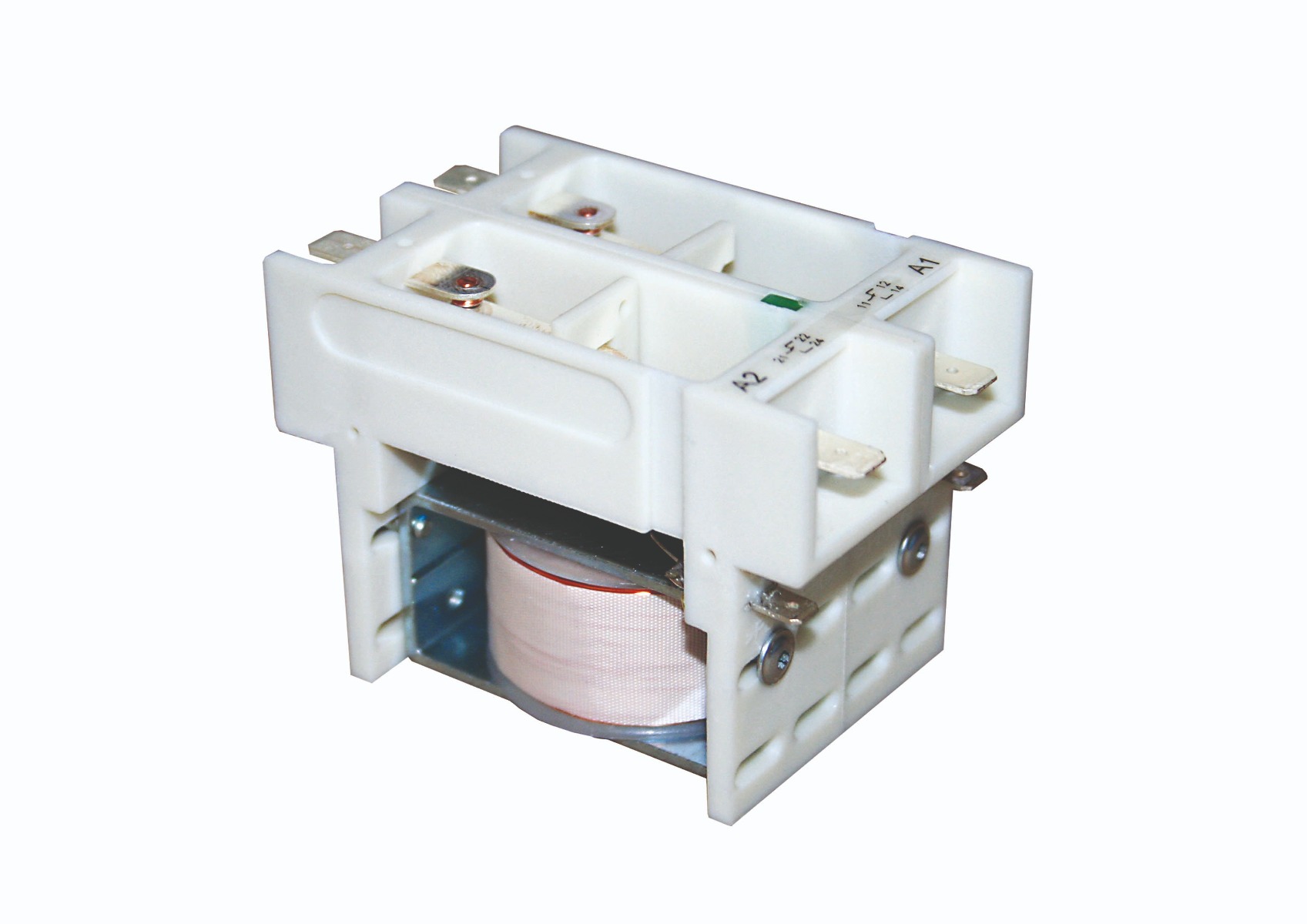

High Voltage Relay RL 42-LC
Product number:
62418
EAN:
4260409229907
€168.00*
In stock
Details
Fachberatung unter
+49 421 277 9999
+49 421 277 9999
Print
Product information "High Voltage Relay RL 42-LC"
Highlights
- Contact configuration: 2 changeover contacts
- Monostable direct current relay
- Excitation coil: 24 VDC / 0.07 A
- Switching capacity max. 5000 VA (resistive load)
- Test voltage: 8000 VDC
- Max. switching voltage: 6000 VAC
- Switching current max. 10 AAC
- Continuous current max. 25 AAC
- Temperature range -25 °C to +40 °C
- Switching frequency max. 1 / sec
- Mechanical switching cycles 5 * 10^6
- Electrical switching cycles 1 * 10^5
- Base body made of highly insulating plastic
- CE-compliant
- Coil- and working connections protected against confusion
- Space-saving installation
- LED status display
- Suppression diode for excitation coil
Dimensions
- Width: 48 mm
- Height: 55 mm
- Length: 78 mm
- Weight: approx. 220 g
- Connection Circuits with flat plug 6.3 * 0.8 mm
- Connection excitation coil with flat plug 4.8 * 0.8 mm
- Mounting clip for high-voltage relays 35 mm (optional)
