  9. Frequency Inverter ST500 220KW 400V
  • Frequency Inverter
    • ST500 400V
    • Accessories
    • Rental Frequency Inverter
    • ST130
    • ST150 230V
    • ST150 400V
    • ST500 230V
    • ST500 500V
    • ST500 690V
    • ST600 400V
    • ST600 400V IP55
    • Software
Zertifiziert nach ISO 9001:2015
ISO_9001_sw_single
st500-frequenzumrichter-160pluskw_337228
st500-frequenzumrichter-160pluskw_337228

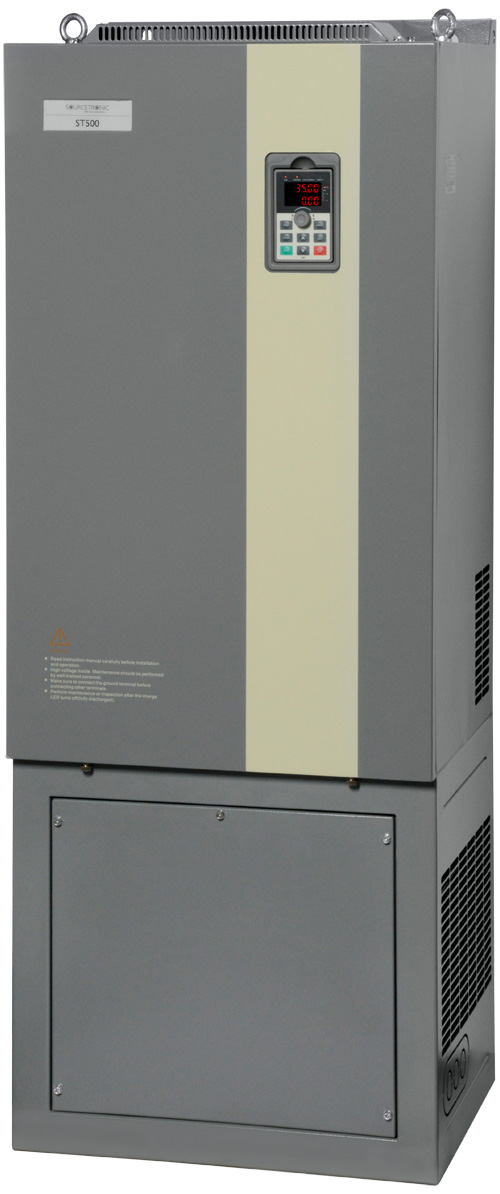

Frequency Inverter ST500 220KW 400V

Product number: 62188
EAN: 4260409225213

€9,999.00*

Prices excl. VAT plus shipping costs

Goods expected soon
Quantity
Choose power:

Details

Fachberatung unter
+49 421 277 9999
Print
  • Description Highlights Power: 220 KW Rated input current: 430 A Rated output current: 426 A Integrated DC-reactor Voltage: 400VAC, +-1… More
  • Downloads
  • Software
Description
Product information "Frequency Inverter ST500 220KW 400V"

Highlights

  • Power: 220 KW
  • Rated input current: 430 A
  • Rated output current: 426 A
  • Integrated DC-reactor
  • Voltage:
    • 400VAC, +-10% (mains: 3-phase/motor: 3-phase)
    • Frequency: 50/60Hz, +-5%
  • Dimensions (W/H/D): 820 / 480 / 368 mm
  • "Plug & Play":
    • Optimal pre-set of parameters
    • Short installation time
    • Easy intuitive start-up operation
    • Flexible digital – and analogue I/Os
  • Motor speed adjustable by potentiometer
  • Overload ability: 1min. 150% / 1 sec. 180%
  • "Open-Loop-Boost-Mode"
  • 150% torque close to 0Hz
  • Auto slip compensation
  • Extended PID functions
  • Pulse output 0-50kHz
  • Stop-function

Technical Data

  • Start/Stop-ramp linear: 0.0-6500.0s
  • PID feedback signal DC(0-10V), DC(0-20mA)
  • Motor nominal frequency 50Hz and 60Hz
  • Forward and reverse operation
  • Controller release/terminals/Bus
  • 16 fixed speeds can be freely set and chosen by input signals
  • 10 ways to control speed
  • Step less setting of PWM frequency 1kHz-15kHz
  • Slots for extensions: special pump control, I/O extension, incremental encoder
  • Output frequency:
    • Vector control: 0-400Hz
    • V/F control: 0-320Hz
  • Control mode:
    • V/F control (linear, square)
    • Vector control W/O PG
    • Accuracy: 0.5%
  • Speed control:
    • Control range 1:100
    • Accuracy 0.5%
  • Torque:
    • Automatic boost for low frequencies down to 1Hz
    • Manual increasing 0.1% - 30%
    • Response time: <40ms
    • Starting torque: 150% from 0.5Hz
    • Speed limits adjustable
    • Closed-Loop-Technique
  • Display:
    • Frequency, current, voltage, torque, PID, ...
    • Error message
    • Keyboard lock
  • Automatic functions:
    • Indication of motor parameters
    • Tension regulation (AVR)
    • Zero-Voltage-Switching
    • Active current limitation
    • Restart after power fail
    • Slip compensation
  • DC brake function (time, intensity, frequency) & JOG-control
  • Reduced motor noises caused by precise PWM-function
  • Elegant avoidance of vibrations by blocking frequencies
  • Variable speed by continuous torque
  • Error memory
  • Temperature -10°C up to +40°C above sea level without power reduction
  • Storage temperature -20°C up to +65°C
  • Humidity 90% RF – without condensation
  • Altitude up to 1.000m above sea level without power reduction
  • Safety standards in accordance to EN 61800-5-1:2007
  • Electromagnetically tolerance in accordance to EN 61800-3:2004+A1:2012
  • Vibration test below 5.9m/s² = 0.6g
  • Protection class: IP20 (EN 60529), NEMA 1
  • RoHS-conform
  • CE-conform

Integrated protection concept

  • 100 % ground fault protection
  • Over- and under-voltage
  • Over- and under-current
  • Overheating protection
  • Over voltage stall
  • Overheating protection
  • Communication fault
  • PID feedback abnormity
  • Cooling according to power rating (fan temperature controlled)
  • Password protection
  • Auto-self testing after restart
  • Power failure bypass

I/O interfaces

  • Digital and analog I/O - flexible configuration
  • 8 digital inputs 9-30VDC (PNP/NPN)
  • 3 analog iputs (0-10V / 0-20mA)
  • 2 digital output 0-24VDC / 0-40mA
  • Pulse output 0-50kHz
  • 2 analog input 0-10VDC, 0-20mA
  • 2 relay output (250VAC/30VDC, 5A)
  • RS485 interface
Choose power:: 160KW, 187KW, 200KW, 220KW, 250KW, 280KW, 315KW, 355KW, 400KW, 450KW, 500KW, 560KW, 630KW, 710KW
Input voltage: 400V
Downloads
  • ST500 STEP 3D Files (35.92 MB)
  • ST500 User Manual (7.25 MB)
  • ST500 Quickstart Guide (3.09 MB)
  • ST500 Bedienungsanleitung (12.11 MB)
  • ST500 Datenblatt (8.27 MB)
  • ST500 Inbetriebnahme Übersicht (83.07 KB)
Software
Frequency Inverter Software ST®Drive
Smartphone ST®APP Bundle Bluetooth
  • Accessoires

Accessoires

Frequency Inverter Software ST®Drive
Frequency Inverter Software ST®Drive

€98.00*
  • Control of a AC-Drive via USB connection to a laptop or PC
  • Devices: ST500 series
  • Comfortable communication via USB
Smartphone ST®APP Bundle Bluetooth
Smartphone ST®APP Bundle Bluetooth

€129.00*
  • Control of a AC-Drive with an Android App via bluetooth
  • Devices: ST9000 / ST500 series
  • Plug and Play
  • Control
  • Operating system: Android
  • Language: English
Consulting Service: Have the frequency converter set up
Consulting Service: Have the frequency converter set up

€54.00*
  • Telefonische Beratung
  • Auslegung und Inbetriebnahme
  • Individuelle Parametrierung
  • Programmbetrieb
  • Parameterliste
Keyboard mounting frame ST500
Keyboard mounting frame ST500

€19.80*
  • Devices: ST500
  • Dimensions (B/H/T): 90/135/22 mm
  • 2m cabel inclusive
Braking resistor SBRU 16 kW 4 Ohm
Braking resistor SBRU 16 kW 4 Ohm

€675.00*
  • Power: 16.0 KW
  • Resistance: 4 Ohm
  • Max. current carrying capacity: 80A
  • Voltage: <800V
  • Temperature contact
  • Terminal: M6
  • Dimensions (W/H/D): 410.5/685/142mm
  • Weight: 30.8kg
  • RoHS compliant
  • CE compliant
  • Protection class: IP20 (EN 60529)
  • Temperature coefficient: <400ppm/C°
  • Resistance material: 0Cr25AL
Project planning and programming
Project planning and programming

Price on request
  • Consulting and design drive technology
  • Project planning Electrical engineering
  • E-construction ePlan P8
  • Programming/visualisation (PLC/HMI/JAVA)
  • Monitoring, control and regulation systems
  • Sensor consulting
  • Processing of tenders with focus on drive technology, automation, pump controls
  • Determination of energy saving potentials
  • Planning, construction, delivery and installation of control systems
Make a request
Installation and Commissioning
Installation and Commissioning

Price on request
  • Installation & Commissioning
  • Configuration and parameterisation
  • Switch cabinet construction
  • Electrification of entire construction sites
  • Frequency converter exchange
  • Standard-compliant documentation
  • Instruction of the operating personnel
Make a request
Drive Technology Express Service
Drive Technology Express Service

Price on request
  • Frequency Inverter Quick Service
  • Installation, commissioning, trial operation
  • Instruction of the operating personnel
  • Identification of error causes
  • Reduction of subsequent and repeat faults
  • Maintenance, servicing and retrofitting of systems
  • Lifecycle management of drive technology
  • Around-the-clock service": 24/7 monitoring service of plants
Make a request
Pump Control SPC 160KW - 710KW
Pump Control SPC 160KW - 710KW

Price on request
  • Power: 160 kW to 710 kW, 400V
  • Precise PID control with frequency converter
  • Modular compact switchgear
  • Switch for manual and automatic operation
  • Pressure, level, temperature control, etc.
  • Efficiency according to IE2 (up to 98%)
  • Software: ST®DRIVE, ST®APP
  • Control voltage: 230VAC / 24VDC
  • Protection class: IP54, EN60529/NEMA4
  • Additional motor protection switch
  • Gentle motor choke
  • Circuit breaker
  • Thermostat for temperature adjustment
  • Powerful 24V auxiliary power supply
Make a request
Motor Control SMC 160KW - 710KW
Motor Control SMC 160KW - 710KW

Price on request
  • Power: 160 to 710 kW 400V
  • Infinitely variable speed adjustment
  • Precise PID control with frequency converter
  • Modular compact switchgear
  • Switch for manual and automatic operation
  • 2 x indicator lights, 1 x potentiometer
  • Motor protection
  • Pressure, Temperature control, etc.
  • Efficiency according to IE2 (up to 98%)
  • Software: ST®DRIVE, ST®APP
  • Control voltage: 230VAC / 24VDC
  • Protection class: IP54, EN60529/NEMA4
  • Additional motor protection switch
  • Gentle motor choke
  • Circuit breaker
  • Thermostat for temperature adjustment
  • Powerful 24V auxiliary power supply unit
Make a request

* All prices excl. VAT plus shipping costs and possible delivery charges, if not stated otherwise.

Visa
Mastercard
Paypal
Sofortueberweisung
Ups
Facebook Instagram Youtube Ausbildungsbetrieb
Drive Technology
  • Frequency Inverters
  • Pump Controls
  • EMI Input Filters
  • Brake Resistors
Measurement Technology
  • Hipot Testers
  • Multimeters
  • LCR Meters
  • Safety Testers
Service
  • Calibration Services
  • Rental Equipment
  • SALE
Interesting
  • Blog
  • Company
  • Contact
  • FAQ
  • Glossary
  • Terms & Conditions
  • Return Policy
  • Delivery
  • Payment Terms
  • Privacy Policy
  • Order Process
  • Legal Notice
© 2023 Sourcetronic GmbH. All rights reserved.

Functional cookies are absolutely necessary for the functionality of the web shop. These cookies assign a unique random ID to your browser so that your unhindered shopping experience can be guaranteed over several page views.

Activated cookies:
Saves which cookies have already been accepted by the user for the first time.
PayPal payments
Timezone:
The cookie is used to provide the system with the user's current time zone.
Cookie settings:
The cookie is used to store the cookie settings of the site user over several browser sessions.
Cache handling:
The cookie is used to differentiate the cache for different scenarios and page users.
CAPTCHA integration
CSRF token:
The CSRF token cookie contributes to your security. It strengthens the security of forms against unwanted hacker attacks.
Information on origin:
The cookie stores the referrer and the first page visited by the user for further use.
PayPal:
The cookie is used for payment processing via PayPal.
Session:
The session cookie stores your shopping data over several page views and is therefore essential for your personal shopping experience.

Cookies used for statistics and shop performance metrics.

Google Tagmanager
Google Analytics
Wishlist

Marketing cookies are used to display advertisements on the website in a targeted and individualized manner across multiple page views and browser sessions.

Google conversion tracking:
The Google Conversion Tracking Cookie is used to track conversions on the website effectively. This information is used by the site operator to target Google AdWords campaigns.

Tracking cookies help the shop operator to collect and evaluate information about the behaviour of users on their website.

Microsoft Advertising Tag UET
Bing Ads:
This cookie is used by Bing to gather anonymous information on how visitors are using the website.
Google Analytics:
Google Analytics is used for traffic analysis of the website. Thereby statistics about website activities can be created and read out.
We respect your privacy
This website uses cookies to ensure the best experience possible. More information...







SOURCETRONIC GmbH • Fahrenheitsstrasse | • 28359 Bremen • Germany • T +49 421 2 77 99 99 • www.sourcetronic.com
