Two-Part Testsystem

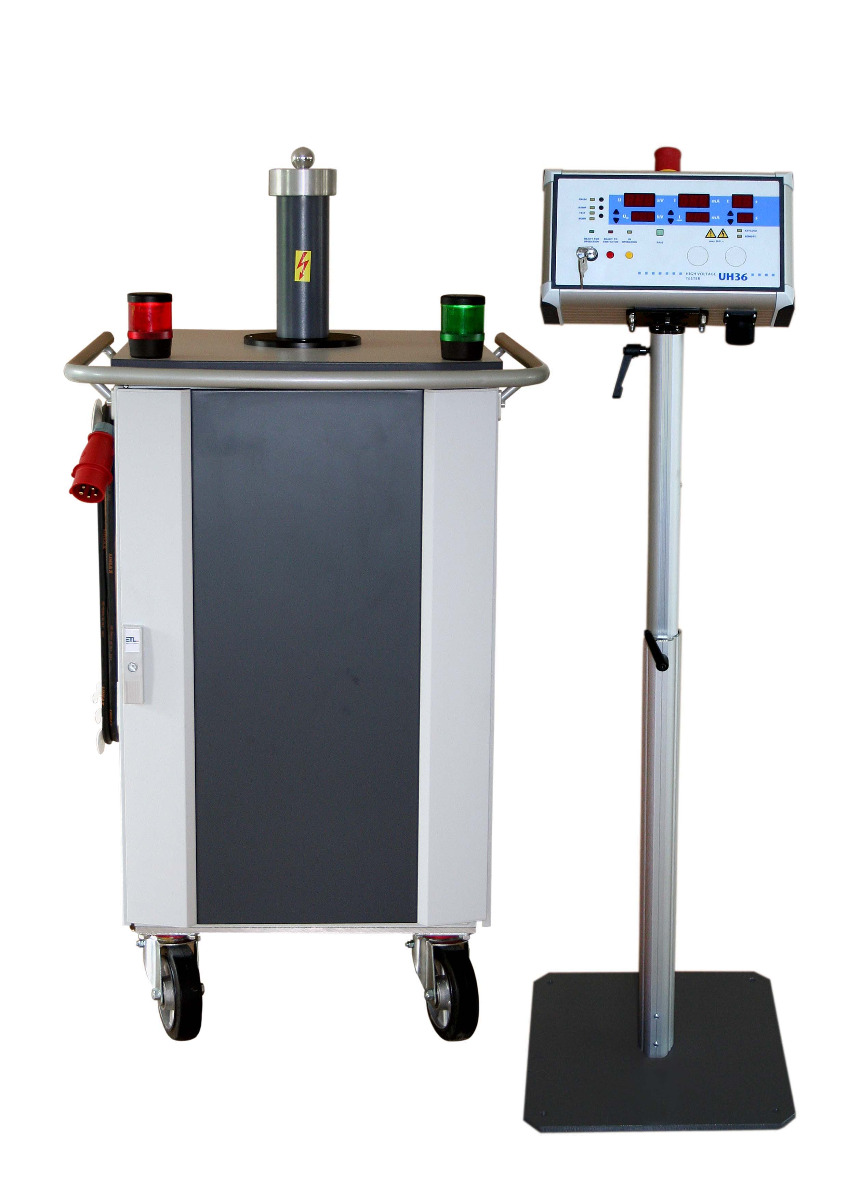

Two-part high-voltage AC test system for testing the voltage resistance. The connection is made via high voltage cables to the test object. The system consists of a separate control unit (control unit) and a power unit. The voltage drop occurs on the power section via a tube which has been shown above. The power unit of the test unit is housed in a mobile metal housing. The housing is equipped with large rubber tires (160 mm). The control unit can be fixed for transport on the power section.
Highlights
- 75kV AC
- PI-regulated
- Test current: 0.5mA - 100mA
- Power: 7500 VA
- With oil transformator
- Testing time: 1s - 99min, endless
- For aplications with fixed high voltage cabling
- Ramping
- Robust burning function
- 4-wire-contact monitoring
- Wire break monitoring
- Launch control
- Programmable test parameters
- RS232, digital I/O (SPS), CAN
- Software, DLL, LabView, Active-X (option)
Test methods
- High voltage test AC
- AC voltage: 1000 V - 75.000 V
- AC current: 0.5 - 100 mA
- Short circuit current: > 200 mA
- Transformer capacity: 1000 VA
- Output frequency 50 Hz / 60 Hz
Technical data
- Desktop unit with oil transformer
- Regulated test voltage
- High voltage output via tube
- Error message: acoustic, optical, interface
- Zero voltage switch(to conserve test object)
- ACTUAL- and SET POINT-display (current/voltage)
- Key panel interlock
- Acoustic signaling adjustable
- Display brightness control
- Start mode selectable
- Data management program with your PC (optional)
- Ramp times and ramp types
- Verifying time scaling
- Test time: 1-99s, continuous
- Ramp Time: 0.5-99s
- Minimum current monitoring
- Large LED display and various control buttons
- CAN bus for expansions
- Digital interface for remote control by PLC:
- START / STOP
- PASS / FAIL
- Test in progress
- Terminals:
- 2 HV sockets potential free
- Warning lamp
- Foot switch, test-cage, light curtain, prod.-line, two-hand-operation
- Highest safety standard:
- Key switch preventing unauthorized use
- High voltage absolutely potential-free
- Two fold isolated transformer and measurement converter
- Status indication
- Socket for external pilot lamp
- Integrated warning buzzer
- Insulated sockets
- Security activation knob in compliance with VDE0104
- Safety Circuit with forcibly actuated HV relays
- Power supply: 400V, 50/60 Hz
- Mains connection: CEE 32 A, 5p
- Tolerance input voltage: +/- 10 %
- Current consumption: max. 25A
- Fuse: B 32 A
- Mains connection: schuko plug
- Tolerances: ± 10%
- Operating temperature: +5° to +40°
- Humidity: 80% (non condensing)
- Casing: IP20
- Compact industrial housing (RAL 7035)
- Weight: 370 kg
- CE-conformity, according to EN 50 191
- Cooling: passive, active cooling optional available
Dimensions
- Width test trolley/body (corpus): 610 mm
- Width test trolley incl. handle: 770 mm
- Width test trolley incl. handle and wire holder: 830 mm
- Hight test trolley incl. castor: 250 mm
- Hight test trolley incl. castor and tube: 700 mm
- Depht test trolley/body (corpus): 650 mm
- Depht test trolley incl. handle: 750 mm
- Depht test trolley incl. handle: 1240 mm
What's in the box
- Interlock connector
- Key set
- Power cable
- Operation manual
- Factory calibration
