EMI Input Filter 45KW

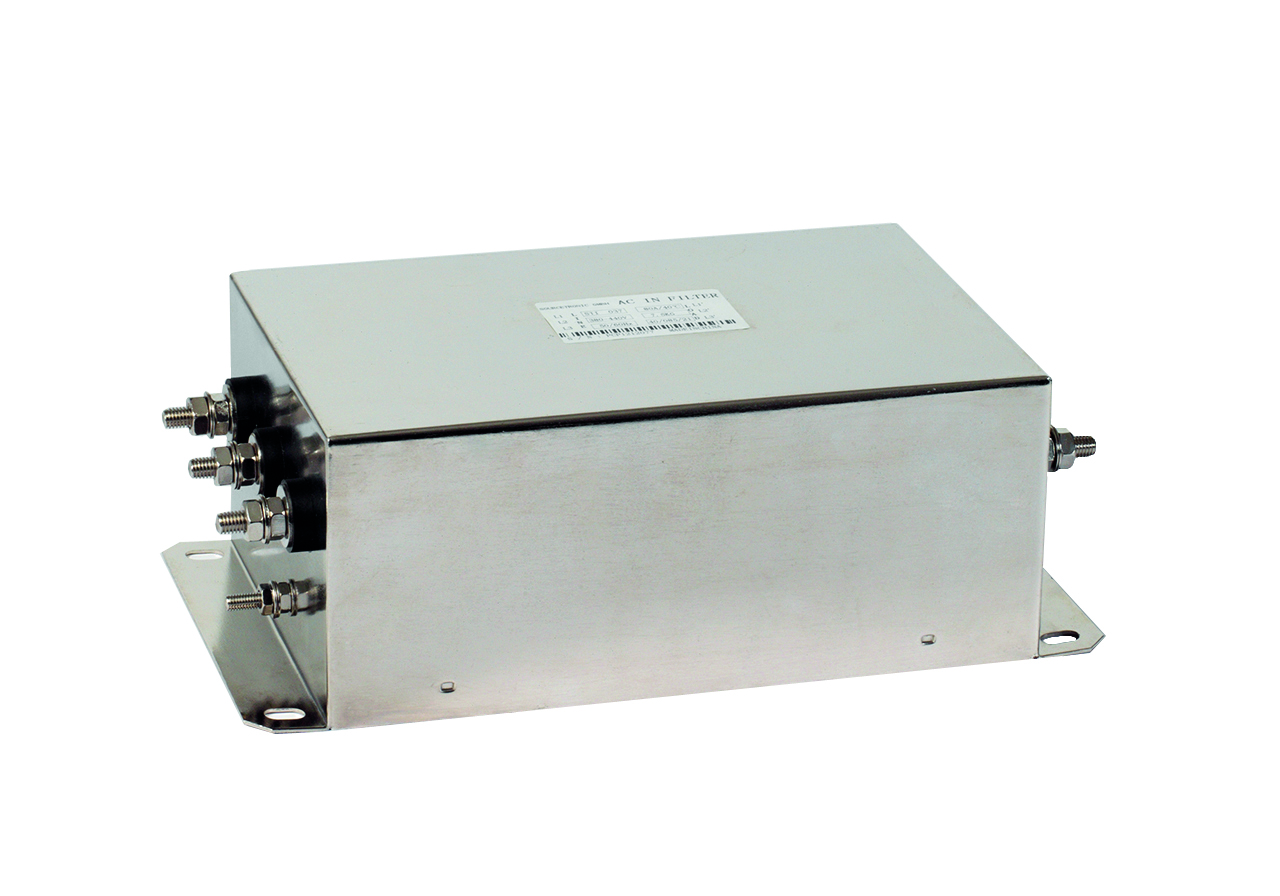

EMI Input Filter STI 45 kW 690V

Product number: 61807
EAN: 4260409220324

€769.00*

Prices excl. VAT plus shipping costs

Goods expected soon
Quantity

Details

Fachberatung unter
+49 421 277 9999
Print
Description
Product information "EMI Input Filter STI 45 kW 690V"

Highlights

  • Modern Filter-concept
  • EMI / RFI optimized layout
  • Metal casing

Technical data

  • Power: 45 KW
  • Current: 100 A
  • Voltage: 690V 3-phase
  • Frequency: 50Hz / 60Hz
  • Category: C2
  • Dimensions (W/H/D): 261/100/90 mm
  • Weight: 7.7 kg

Features and Functions

  • Universal EMI / RFI Solution
  • Application areas: AC Drives, Process automation, telecomunications etc.
  • Very good attenuation properties
  • Low inductance
  • Minimized resistance
  • Easy installation and maintanence
  • For different AC-Drive manufacturers
  • Easy installation and maintanence
  • Low leakage current
  • Areatemperature : -25°C up to 85°C
  • RoHS-conformity
  • CE-conformity
Power: > 30kW - 160kW
Voltage: 690V
