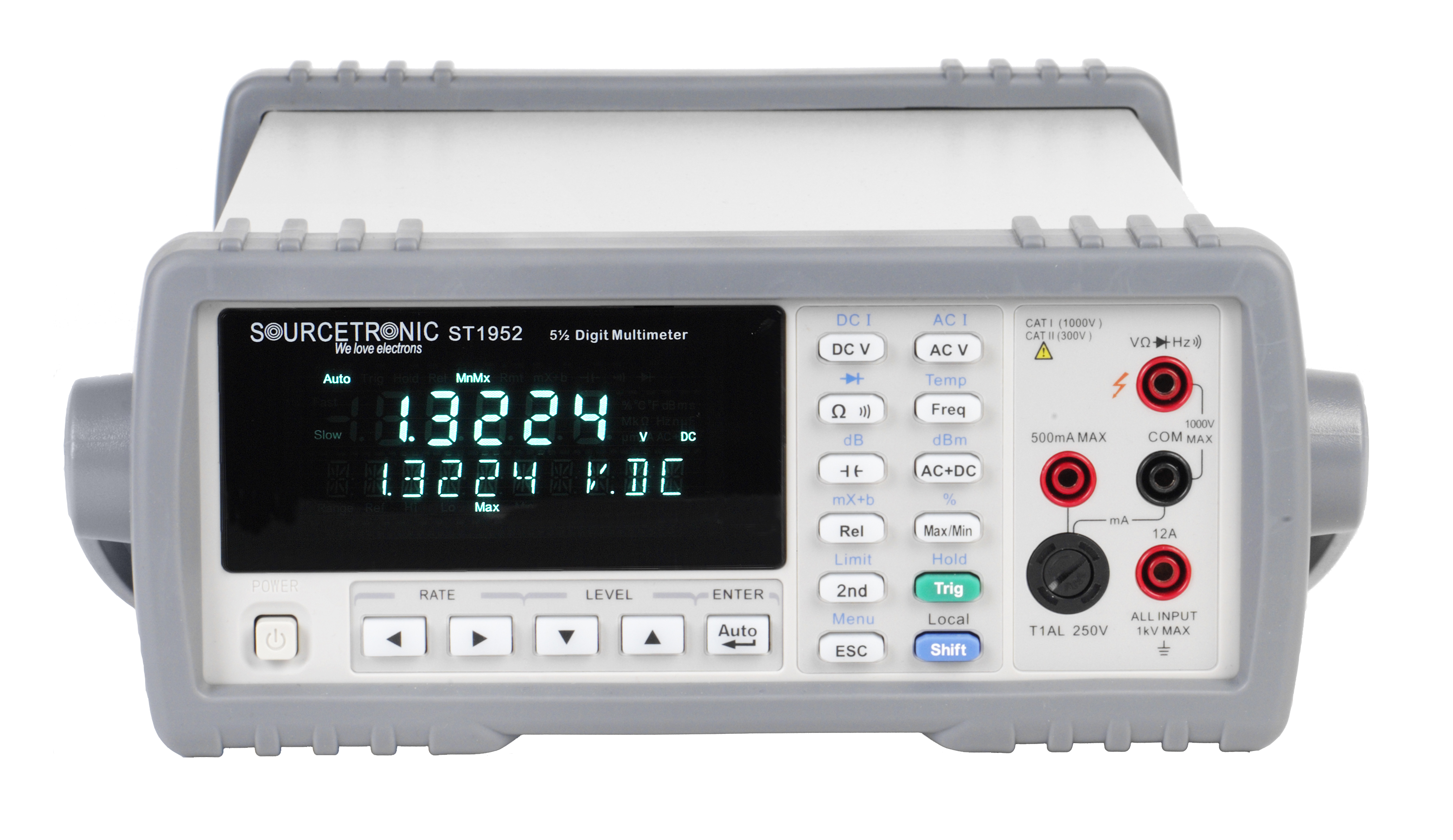

Digital Multimeter ST1952

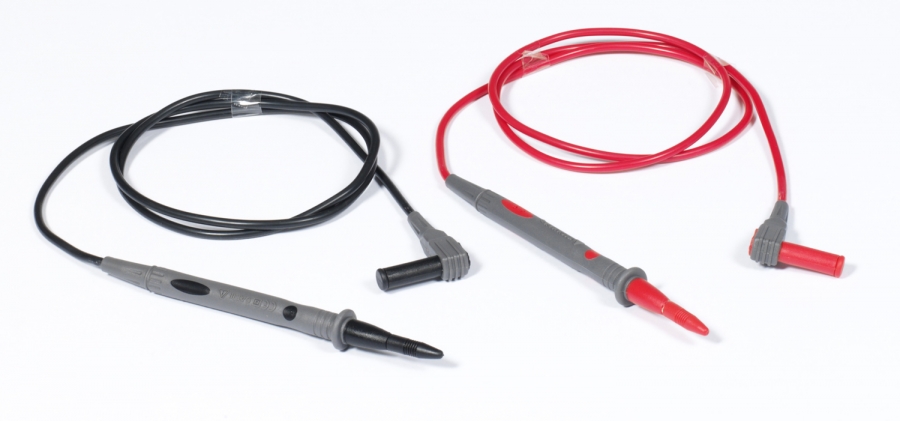

pair test leads for Digital multimeter ST1952
Digital Multimeter ST1952
pair test leads for Digital multimeter ST1952
Digital Multimeter ST1952
pair test leads for Digital multimeter ST1952
Digital Multimeter ST1952
pair test leads for Digital multimeter ST1952

Digital Multimeter ST1952

Product number: 61233
EAN: 4260254479694

€730.00*

Prices excl. VAT plus shipping costs

Goods expected soon
Quantity

Frequently bought together

  • Digital Multimeter ST1952
  • Digital Multimeter ST1952
  • Digital Multimeter ST1952
Total price:
excl. VAT
  • Current product: Digital Multimeter ST1952 - €730.00
  • Calibration Multimeter €89.00
  • Test Leads ST26036 €38.00

Details

Fachberatung unter
+49 421 277 9999
Print
  • Description Overview ST1952 5 1/2 digit multimeter is a multi-functional, cost-effective voltage/current/resistance/capacitance meter. I… More
  • Downloads
  • Technical data
Description
Product information "Digital Multimeter ST1952"

Overview

ST1952 5 1/2 digit multimeter is a multi-functional, cost-effective voltage/current/resistance/capacitance meter. It provides max. 120000 count, max. sampling rate 200 times/s, 0.012% DCV accuracy, etc., which is the optimal selection for users. TH1952 provides high brightness VFD dual-display, which can display ACV/DCV or DCI, ACV/ACI and frequency etc. simultaneously to improve the test efficiency and, clearer display. ST1952 is equipped with USB and RS232 interfaces, and also communication software is provided optionally for PC communication, data analysis, statistics, building system. ST1952 accepts SCPI command to be compatible with communication software. A Handler interface is provided to receive an external trigger signal and output sorting signals for production line.

Highlights

  • 5 1/2 digit display with 120000 counts
  • High brightness vacuum fluorescent dual-display (VFD)
  • True-rms AC voltage and current test
  • Multiple mathematics operation function:
    DCV/ACV/DCI/ACI/AC+DC/Ω/CAP/Temperature/Frequency/Diode/Continuity and dB/dBm
  • Other parameters in current test signal displayed in second display
  • Max. ADC sampling rate can be 200 times/s
  • DCV test accuracy up to 0.012 % resolution up to 1 µV
  • Relative mode (REL) to eliminate remaining reading
  • Calibration without opening the case
  • Limit function(Limit), for fast sorting
  • Data statistics function Max/min, Max. value, Min. value, Average value and number of statistics
  • Standard USB interface, provide conventient system communication function
  • Standard Handler interface, provide external trigger and sorting signal for production line

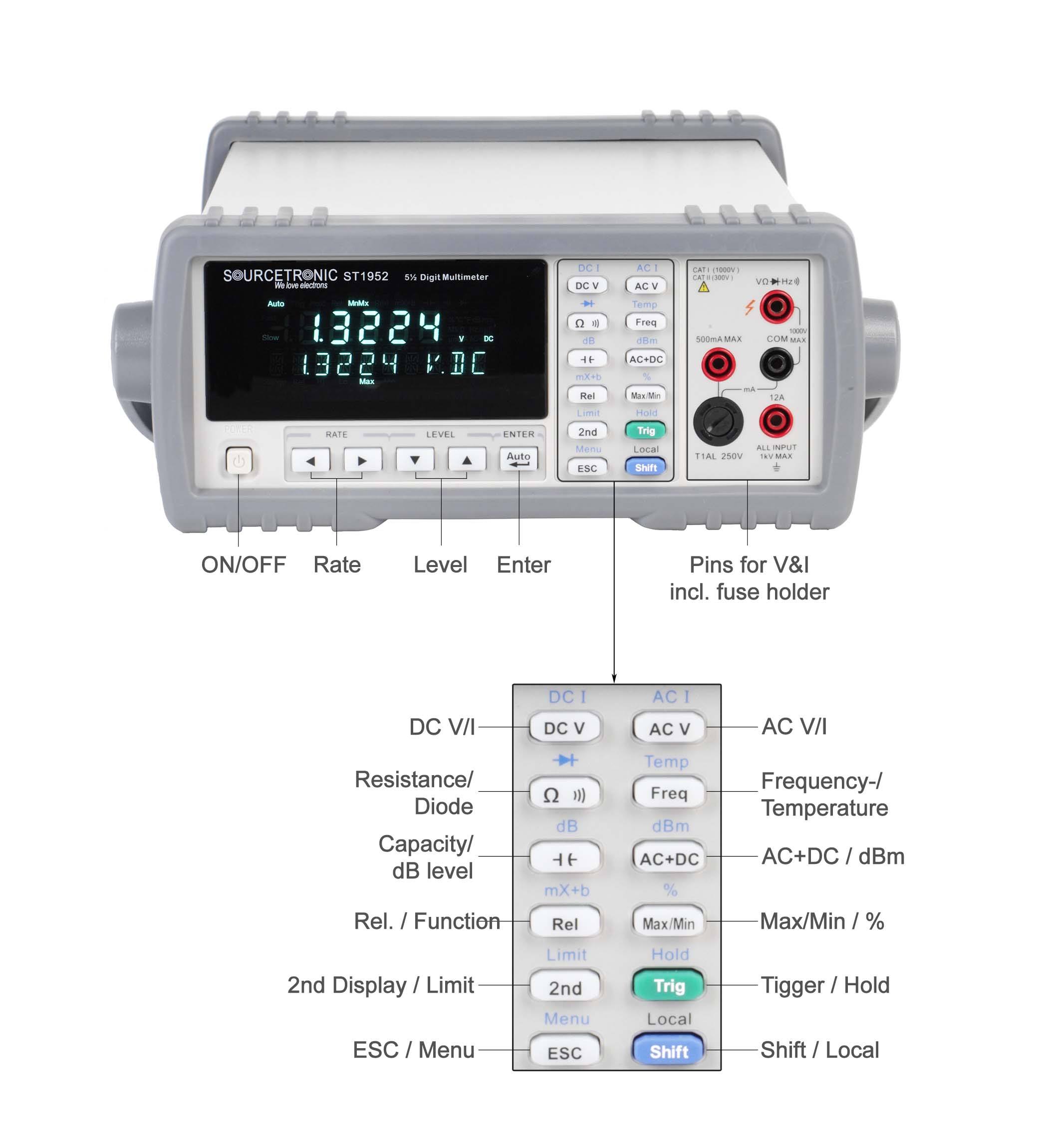

ST1952 overview

What's in the box

  • ST26036 test leads one pair (black and red)
  • Operation manual
  • Power cord
  • Factory calibration
Downloads
  • ST1952 User Manual (3 MB)
Technical data

Technical specification

Test parameter DCV, ACV, DCI, ACI, DCR, CP, FREQ, CONT, DIODE, TEMP
Mathematics function %, dB, dBm, REL, mX+ b
Range Auto, Manual
Display High brightness VFD dual-display
Triggger Mode INT / BUS / EXIT
Reading Hold To find out best stable reading for each data block of the given reading number according to the given accuracy
Limitation measurement To judge HI, IN, LO and display, with ALARM for HI/LO
Calibration Auto, Manual
External Trigger Handler interface (external trigger and output sorting signals)
Communication interface SCPI command support for RS232 and USB interface
Performance parameter expression of uncertainty: ± (% of reading +% of full scale)

Reading rate (reading/s)

Reading Rate Fast Slow
4 1/2 5 1/2 4 1/2 5 1/2
DCV/DCI 100 15 15 4
ACV/ACI 100 15 15 4
Ω 100 15 15 4

DC V

Range Min. Resolution Max. Uncertainty (1year)
100 mV - 1000 V 1 μV 0.02 % + 0.005 %

DC I

Range Min. Resolution Max. Uncertainty (1year)
1 mA - 100 mA 10 nA 0.05 % + 0.005 %
1 A 10 μA 0.10 % + 0.008 %
10 A 100 μA 0.20 % + 0.006 %

AC V

Range Frequency Min. Resolution Max. Uncertainty (1year)
100 mV - 750 V 20 Hz - 50 Hz 1 μV 1.00 % + 0.10 %
50 Hz - 10 kHz 0.20 % + 0.08 %
10 kHz - 30 kHz 0.80 % + 0.08 %
30 kHz - 100 kHz 2.00 % + 0.20 %

AC I

Range Frequency Min. Resolution Max. Uncertainty (1year)
1 mA - 10 A 20 Hz - 50 Hz 10 nA 1.00 % + 0.08 %
50 Hz - 2 kHz 0.50 % + 0.08 %
2 kHz - 10 kHz 2.00 % + 0.18 %

Resistance

Range Min. Resolution Max. Uncertainty (1year)
100 Ω - 1 MΩ 10 μΩ 0.05 % + 0.008 %
10 MΩ 100 Ω 0.20 % + 0.008 %
100 MΩ 1 kΩ 2.00 % + 0.005 %

Capacitance

Range Min. Resolution Max. Uncertainty (1year)
1 nF 1 pF 2.00 % + 0.8 %
10 nF - 1000 uF 10 pF 1.00 % + 0.5 %
10000 uF 1 uF 2.00 % + 0.5 %

Frequency

Range Voltage Sensivity Min. Resolution Max. Uncertainty (1year)
1 Hz - 1 MHz 40 mV rms 10 μHz 0.005 % + 0.003 %

Temperature

Range Probe type Min. Resolution Max. Uncertainty (1year)
- 10 °C - 100 °C PT 500 0.1°C Probe accuracy ±0.2 °C
Uncertainty is not assured if the temperature is our of range
