Surge Tester ST2883-10
Codice prodotto:
62382
EAN:
4260409229082
4.150,00 €*
Solo 1 rimasti in magazzino
Dettagli
Servizio tecnico +49 421 277 9999
Stampa
Descrizione
Info sui prodotti "Surge Tester ST2883-10"
Highlights
- LAN / LXI 10kV Surge tester
- Fast measurement speed of 6 meas/sec.
- 4 waveform comparison methods
- Area, Differential Area, Corona Discharge, Differential Phase
- 65k color 7" TFT wide display screen
- Pass/Fail comparison output
- Interfaces: Handler, RS232, USB, LAN
- Waveform can be stored on USB-Sticks (500 Groups)
- Foot switch
Features
- Output Impulse Voltage 100V – 10000V, 20V resolution
- Accuracy: 5%
- Voltage Control Modes Constant and Normal
- Impulse Energy maximum 500 milli-Joules @ 1kOhm
- Inductance Range > 20 µH
- 200 MS/s sampling rate
- 3 phase
- Input Impedance 5MOhm
- Sampling Resolution 8 bits
- Sampling Length 960 Bytes
- Direct display of comparison results
- Average Rate Programmable 1 – 99
- Internal Waveform Data Memory 20 Groups
General
- Power: 115 / 230 V ± 10 %, 50/60 Hz
- Weight 15 kg
- Dimensions 400x132x390 mm
- Operating Environment 0°C - 40°C, ≤ 75% RH
What's in the box
- ST2881-001 Footswitch
- ST2883-01 test clip leads
- Connection lead
- Manual
- Factory calibration
Options
- ST10001 GPIB Interface Board
- ST12021 Control Software
Downloads
- ST2883-10 User Manual (1.7 MB)
Software
Related products
Calibration Surge Tester
129,00 €*
- Standard-compliant, multi-vendor calibration based on ISO 17025
- Surge Tester
- Traceable to DKD
- Cleaning and adjustment
- Repair service
Control Software ST2883-S
149,00 €*
- Devices: surge voltage tester ST2883
- Analysis software for the evaluation of test results
- Storage of measurement results on the PC
- Operating systems: Win 7, Win 10
- Save as: CSV, PNG, BMP JPEG
- Basic functions:
- Std Wave, Comperator, Area Size, Zone Diff., Corona, Phase Diff.
- Parameter settings: Voltage, Test imp., Erase imp. time
- Secure interface: RS232
- Easy to install
Telaio di montaggio SMF29
129,00 €*
- Robusto telaio di montaggio da 19"
- Metallo verniciato a polvere
- Montaggio dell'unità sul davanti
- Unità: ST2829, ST2829XX, ST2883
- Colore: RAL7035 grigio chiaro
- Altezza: 4 U

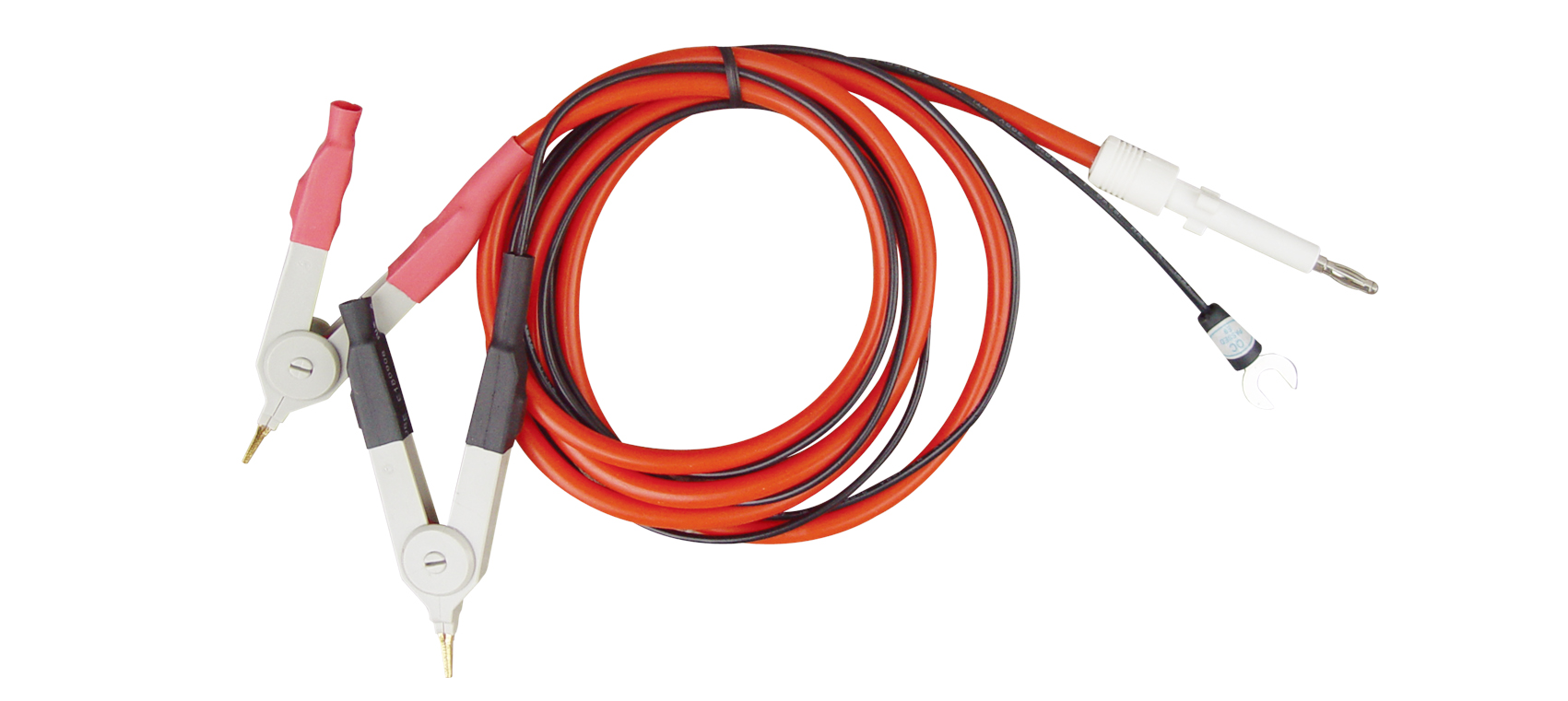

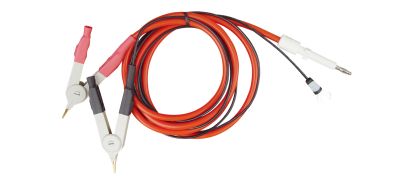

Test Lead ST2883-01
