Sine Wave Filter 220kW STSF-0500-EM15
Codice prodotto:
62096
EAN:
4260409224384
3.690,00 €*
Merce atteso a breve
Dettagli
Servizio tecnico +49 421 277 9999
Stampa
Info sui prodotti "Sine Wave Filter 220kW STSF-0500-EM15"
Highlights
- Sinusoidal Filter
- High resistance level
- Safe and reliable
Technical data
- Power: 220 kW
- Current: 500 A
- Inductance: 0.15mH
- Rated voltage: 400 VAC
- Frequency: 50Hz / 60Hz
- Dimensions (D*H*W): 455x470x480 mm
- Weight: 190 kg
Features and Functions
- Provides a sine-wave ouput voltage
- Lower Risk of overvoltage of electromotor
- Eliminates the preamture aging caused by eddy current lost
- Reduces noise of electromotor

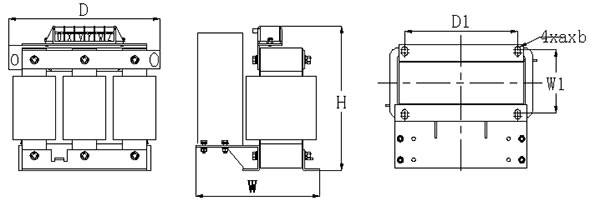

Product size |
|||||
|
STSF-0015-E4M0 |
|||||

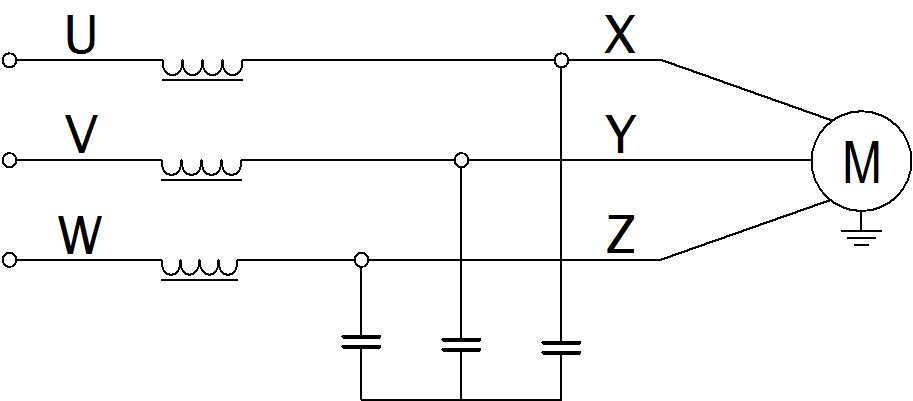

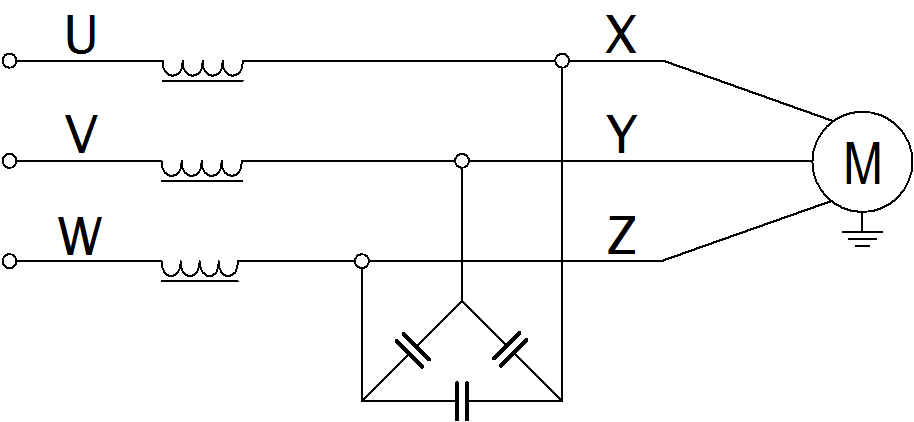

Electrical schematic diagram |
|||||
|
STSF-0015-E4M0 |
| Potenza: | > 160kW - 355kW |
|---|---|
| Tensione: | 400V |
