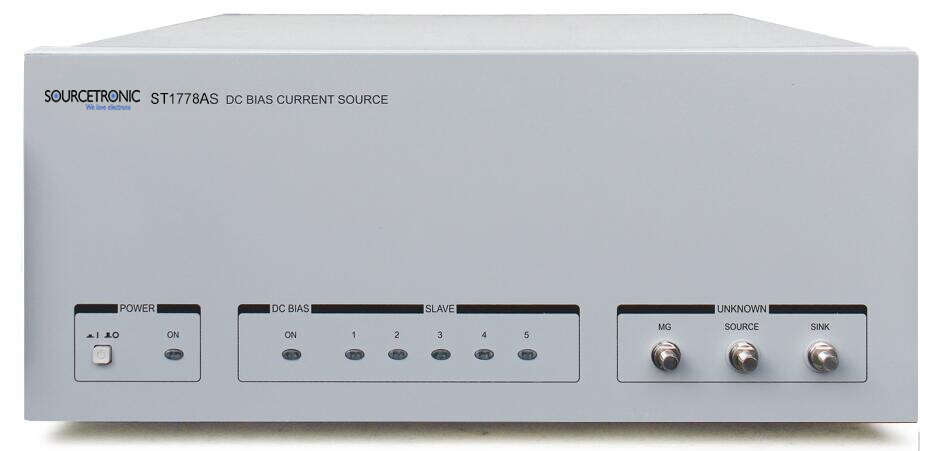

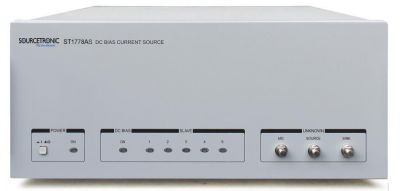

Informations sur le produit "DC Bias Current Source ST1778AS"
- Provide 20A of constant current output for single one
- Slave machine for connection with ST1778A
- Support 6 machines at most and reach 120A of constant current output
- Extreme refined current step:
- when <1A, reach 5mA;
- when <5A, reach 25mA;
- when <120A, reach 100mA
- Adopting a new generation AC/DC superposition test theory to adapt test requirements for high precision and high frequency
- Current output mode: single current, step scan
- Adopting new designed friendly graphical operation interface and providing multiple operation practice
- Providing real-time operation mode for all parameters and settings without waiting
- New file management system with easy, prompt and accurate operation
- Providing two kinds of SCPI command modes with good adaptability
- New foot control mode with 5 control modes
- Excellent tailing capability and extendibility, additional slave superposition depending on the demands
- Offering dual-progress bar indication and corresponding small tools
- English interface and user manual
- Remote operation by Sourcetronic LCR Meter:
- Master-Slave connection mode is convenient for cutting and extending.
- Multi-mode SCPI system makes the formation of production lines not tedious any more.
- Multiple opera
