ST600 | Multi-speeds with digital inputs – Simple frequency
English
Speed1=50Hz, Speed2=40Hz and Speed3=30Hz
| P00.01 | 1 | Operating command via terminal |
| P00.06 | 6 | Frequency reference via multi-speed terminals |
| P00.11 | 4 | Acceleration time 4 sec. |
| P00.12 | 4 | Deceleration time 4 sec. |
| P05.01 | 1 | S1 terminal for run command |
| P05.02 | 16 | S2 = Multi-speed terminal 1 (T1) |
| P05.03 | 17 | S3 = Multi-speed terminal 2 (T2) |
| P10.02 | 100 | Speed level 0: 100% of target frequency P00.03 |
| P10.04 | 80 | Speed level 1: 80% of target frequency P00.03 |
| P10.06 | 60 | Speed level 2: 60% of target frequency P00.03 |
After the start command at S1, the frequency inverter starts at level 0, i.e. 100% of the target frequency, with an acceleration and deceleration time of 4 seconds.
If, in addition to S1, S2 is activated, the inverter switches to level 1 and runs at 40Hz.
If S3 and S1 are active, the inverter runs in level 2 at 30Hz.
If another speed level is required, speed level 3 can be programmed in P10.08, which is activated when both S2 and S3 are active.
Alternatively, if the terminals need to be switched independently, another terminal Sx can be parameterized with the value 18: Multi-speed terminal 3 (T3). In this case, speed level 4 becomes valid when activated and is parameterized in P10.10.

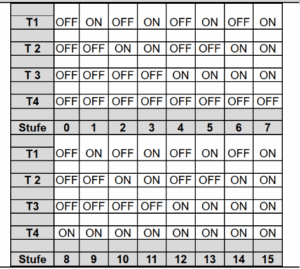

The following table shows which multi-speed terminals must be used and how they relate to the individual levels.
