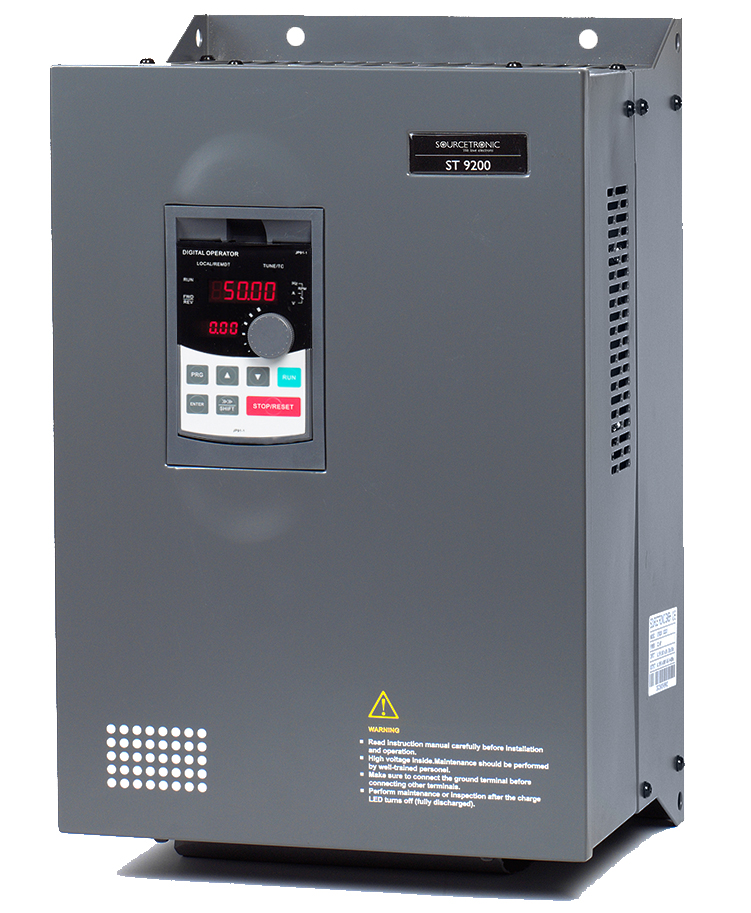

Frequency Inverter ST9200 93KW 400V Demo Device
Número de producto:
64085
EAN:
4260689520428
2.999,00 €*
Bueno esperado pronto
Detalles
Asesoramiento Especializado +49 421 277 9999
Imprimir
Descripción
Información sobre el producto "Frequency Inverter ST9200 93KW 400V Demo Device"
A newer version is also available in our shop
Highlights
- Power: 93 KW
- Current: 176 A
- Input voltage range:
- 3 x 380-415VAC, +-15%, 50/60Hz +-5%
- Other voltages on request: 500V, 690V
- Weight: 25 Kg
- Dimensions (W/H/D): 710 / 453 / 295 mm
- "Plug & Play":
- Optimal pre-set of parameters
- Short installation time
- Easy intuitive start-up operation
- Flexible digital – and analogue I/O´s
- Switchable control panel (LAN-cable)
- Double display (e.g. acutal-/target freq.)
- Motor speed adjustable by thumb wheel
- Overload ability: 1min. 150% / 2 sec. 180%
- Realized lowest 1Hz
- "Open-Loop-Boost-Mode"
- 180% torque close to 0Hz
- Parameter sets switchable (4)
- Extended PID-functions
- 8/2 digital I/Os
- 2/2 analog I/Os
- 2 relay outputs
- Fast-stop/emergency-stop-function
- Extremely energy efficient
Technical Data
- Start/Stop-ramp (linear / S-curve): 0.0-6500.0s
- PID feedback signal DC(0-10V), DC(0-20mA)
- Motor nominal frequency 50Hz and 60Hz
- Forward and reverse operation
- Controller release/terminals/Bus
- 16 fixed speeds can be freely set and chosen by input signals
- 10 ways to control speed
- Step less setting of PWM frequency 0.5kHz-16kHz
- Slots for extensions: special pump control, I/O extension, incremental encoder
- Output frequency:
- Vector control: 0-300Hz
- V/F control: 0-3200Hz
- Control mode:
- V/F control (linear, square, custom)
- Vector control W/O PG
- Vector control W/PG
- Speed control:
- Control range 1:100 (without PG) / 1:1000 (with PG)
- Accuracy 0.5% (without PG) / 0.02% (with PG)
- Torque:
- Auto-increasing in order to low frequency (1Hz)
- Manual increasing 0.1% - 30%
- Response time: ≤5ms
- Starting torque: 150% from 0.5Hz
- Speed limits adjustable
- Closed-Loop-Technique
- Display:
- Frequency, current, voltage, torque, PID, ...
- Error message
- Keyboard lock / parameter transfer
- Automatic functions:
- Indication of motor parameters
- Tension regulation (AVR)
- Zero-Voltage-Switching
- Active current limitation
- Restart after power fail
- Slip compensation
- JOG-control
- Parallel motor control "Slave-Vector-Control"
- Reduced motor noises caused by precise PWM-function
- Elegant avoidance of vibrations by blocking frequencies
- Variable speed by continuous torque
- Integrated timer and error memory
- Temperature -10°C up to +40°C
- Storage temperature -20°C up to +65°C
- Humidity 90% RF – without condensation
- Altitude up to 1.000m above sea level without power reduction
- Safety standards in accordance to IEC61800-5
- Electromagnetically tolerance in accordance to IEC61800-3
- Vibration test below 5.9m/s²=0.6g
- Protection class: IP20 (EN 60529), NEMA 1
- RoHS-conform
- CE-conform
Integrated protection concept
- 100 % short-circuit protection
- 100 % ground fault protection
- Over- and under-voltage
- Over- and under-current
- Overheating protection
- Over voltage stall
- Overheating protection
- Communication fault
- PID feedback abnormity
- Temperature displayed „Power-Module“ and IGBT
- Cooling according to power rating (fan temperature controlled)
- Password protection
- Auto-self testing after restart
I/O interfaces
- Digital and analog I/O - flexible configuration
- 8 digital inputs 0-30VDC (PNP/NPN)
- 2 digital outputs 30VDC
- 2 analog inputs 0-10VDC, 0-20mA
- 2 analog inputs 0-10VDC, 0-20mA
- 2 relay outputs (250VAC/30VDC, 5A)
Options and accessories
- 9000_RS485 RS485-Interface
- JP6D9000 keyboard rabbet
- ST9100_PG1 Differential input, without frequency divider
- ST9100_PG2 UVW differential input, without frequency divider
- ST9100_PG3 PG-Card for rotation transformer
- ST9100_PG4 OC input, with 1:1 frequency divider
- Brake unit
- Input and output filter according EN61800-3 transient protection
- Power chokes
- Software ST®9000 Bundle
- ST®DLV 1.0 LabView-Treiber
- ST®APP 1.1
